VEVOR K11-160 Lathe Chuck 6", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines VEVOR K11-160 Lathe Chuck 6", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines VEVOR K11-160 Lathe Chuck 6", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines VEVOR K11-160 Lathe Chuck 6", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines VEVOR K11-160 Lathe Chuck 6", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines VEVOR K11-160 Lathe Chuck 6", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines VEVOR K11-160 Lathe Chuck 6", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines
KPK11-160KPZFZ001V0

VEVOR K11-160 Lathe Chuck 6", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines

$80.99
80.99
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.

About this item

  • Quality Material: The lathe chuck body is made of high-quality hardened steel, and the hardness test of the jaws and guides is HRC 58-62. It has high strength and toughness, compression resistance and durability, and long service life.
  • High Precision: The wood lathe chuck jaws and three jaws are self-centering, the alignment accuracy is less than or equal to 0.002" / 0.05 mm, and no adjustment is required after installation. The high precision design of the chuck bevel gear guarantees the accuracy of the chuck operation.
  • 2 Sets of Jaws: This chuck includes two sets of internal and external jaws. The clamping range of this chuck is between 0.12" / 3 mm - 6.3" / 160 mm, which is suitable for clamping a variety of industrial parts.
  • Fast Clamping Speed: The lathe chuck has an automatic centering function, so it does not need to be repeatedly calibrated during installation. It only needs to be installed in the correct order, which is simple, fast, and convenient.
  • High Adaptability: This scroll chuck is highly adaptable and can be used with the same series of jaws, which is suitable for a variety of parts such as hanging shafts, disks, equilateral triangles, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR K11-160 Lathe Chuck 6", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines
Only 1 Left, order soon
VEVOR K11-160 Lathe Chuck 6
VEVOR K11-160 Lathe Chuck 6
VEVOR K11-160 Lathe Chuck 6
6.3-inch 3 Jaw Lathe Chuck
Self Centering & 0.002" High Accuracy & with Two Sets of Jaws
  • This versatile chuck is made of high-quality hardened steel, compression resistance and has a long service life. It has two sets of jaws that can hold industrial parts in the range of 0.12" / 3 mm - 6.3" / 160 mm. Of course, this chuck self-centering function can save the trouble of repeated calibration during installation. This chuck is easy to install and easy to operate. It is suitable for all kinds of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
  • Quality Material
  • High Precision
  • 2 Sets of Jaws
  • Fast Clamping Speed
  • High Adaptability

VEVOR K11-160 Lathe Chuck 6
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR K11-160 Lathe Chuck 6
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR K11-160 Lathe Chuck 6

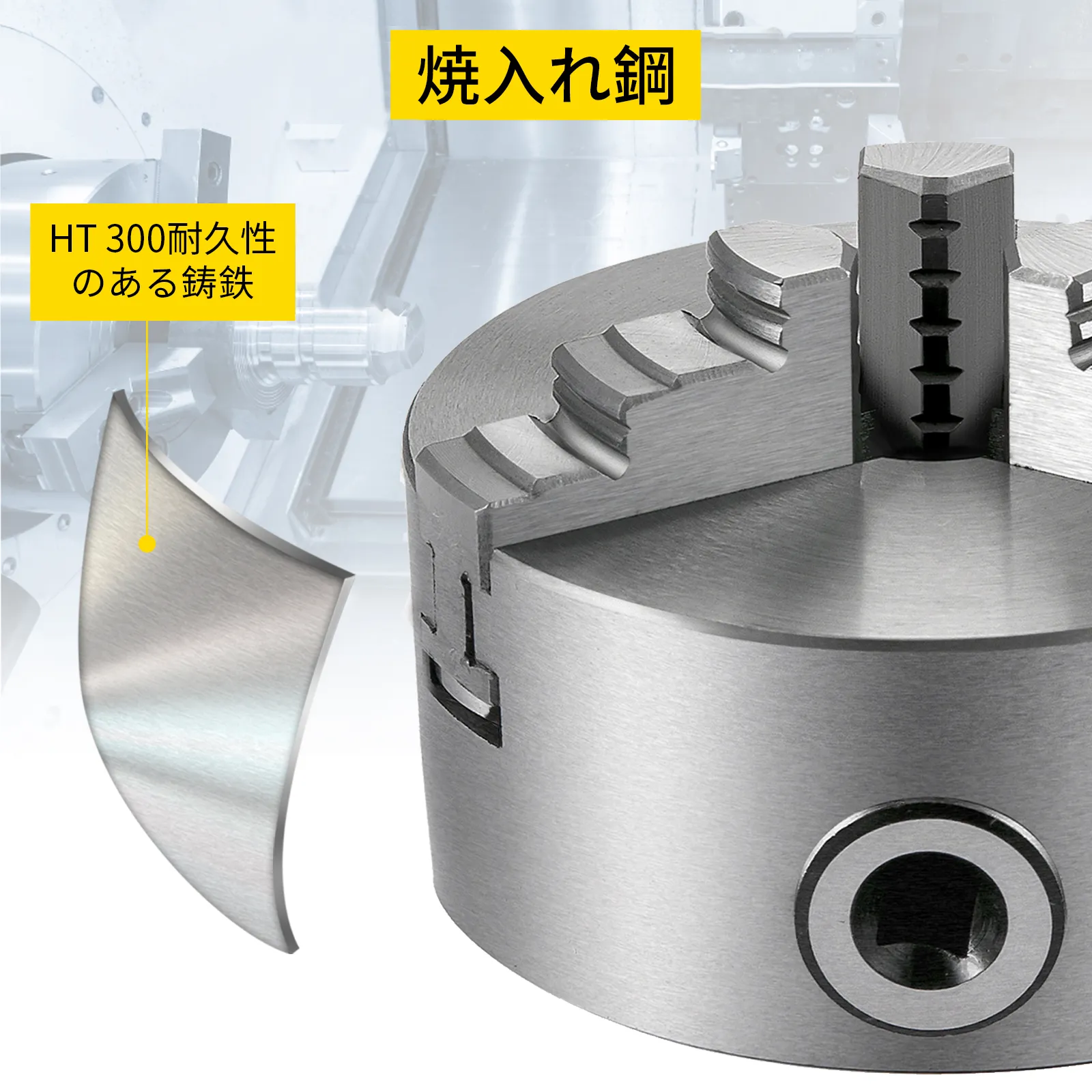

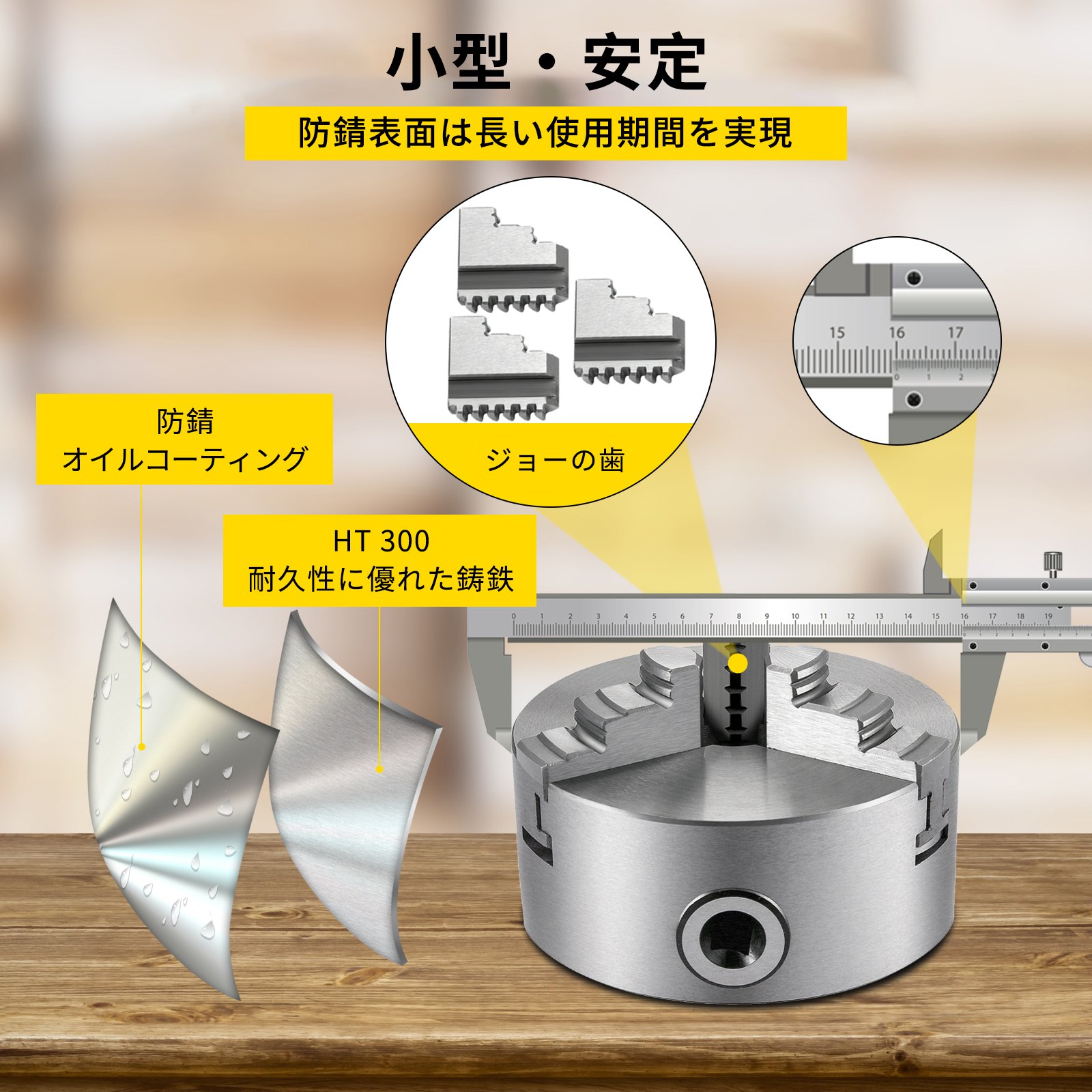

Hardened Steel
All guide rails and bearing surfaces of this jaw self-centering keyed chuck are precision-machined and have passed the HRC 58-62 test.
VEVOR K11-160 Lathe Chuck 6

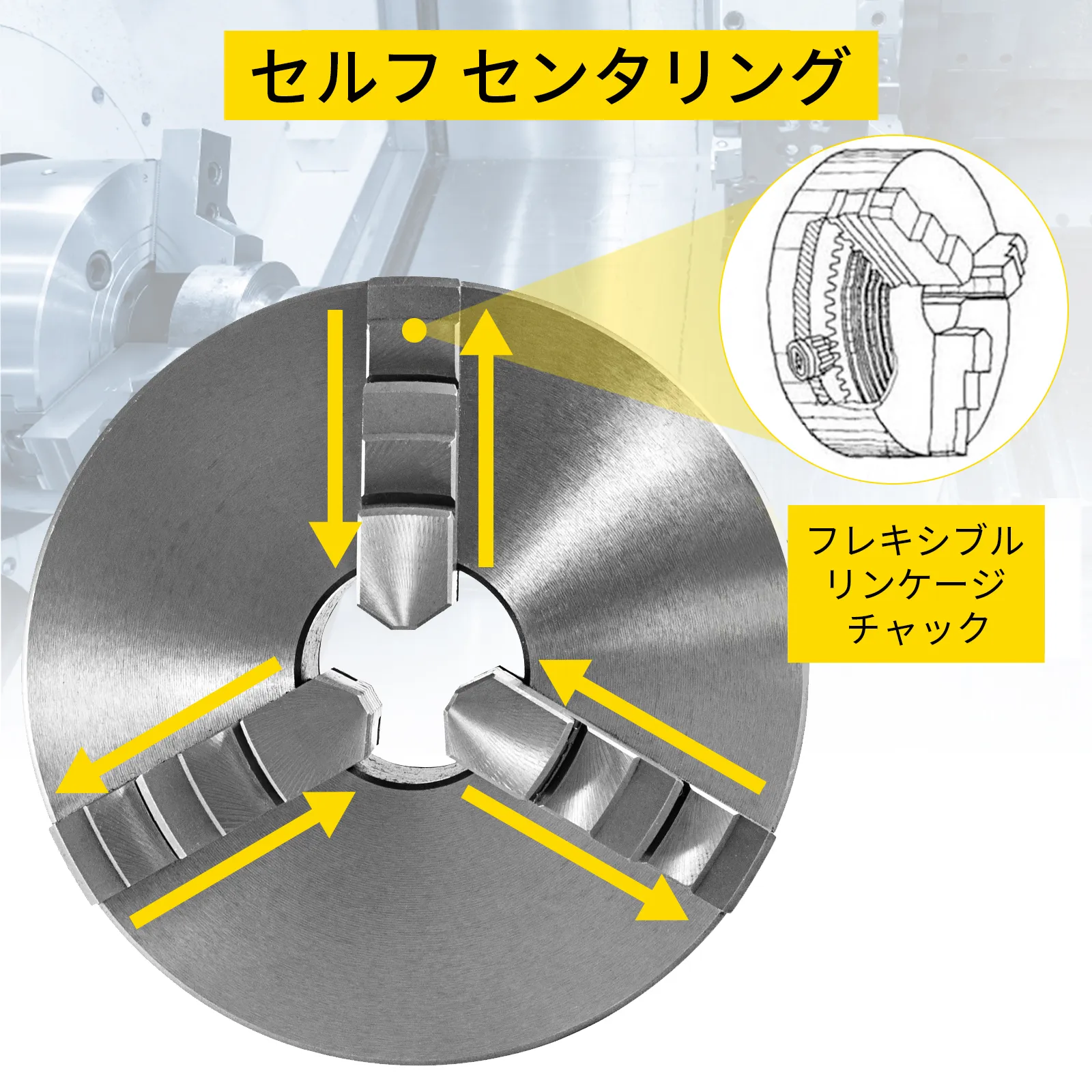

Self Centering
Because the pitch of the flat rectangular thread is equal, the three claws have the same movement distance, which has the function of automatic centering.
VEVOR K11-160 Lathe Chuck 6

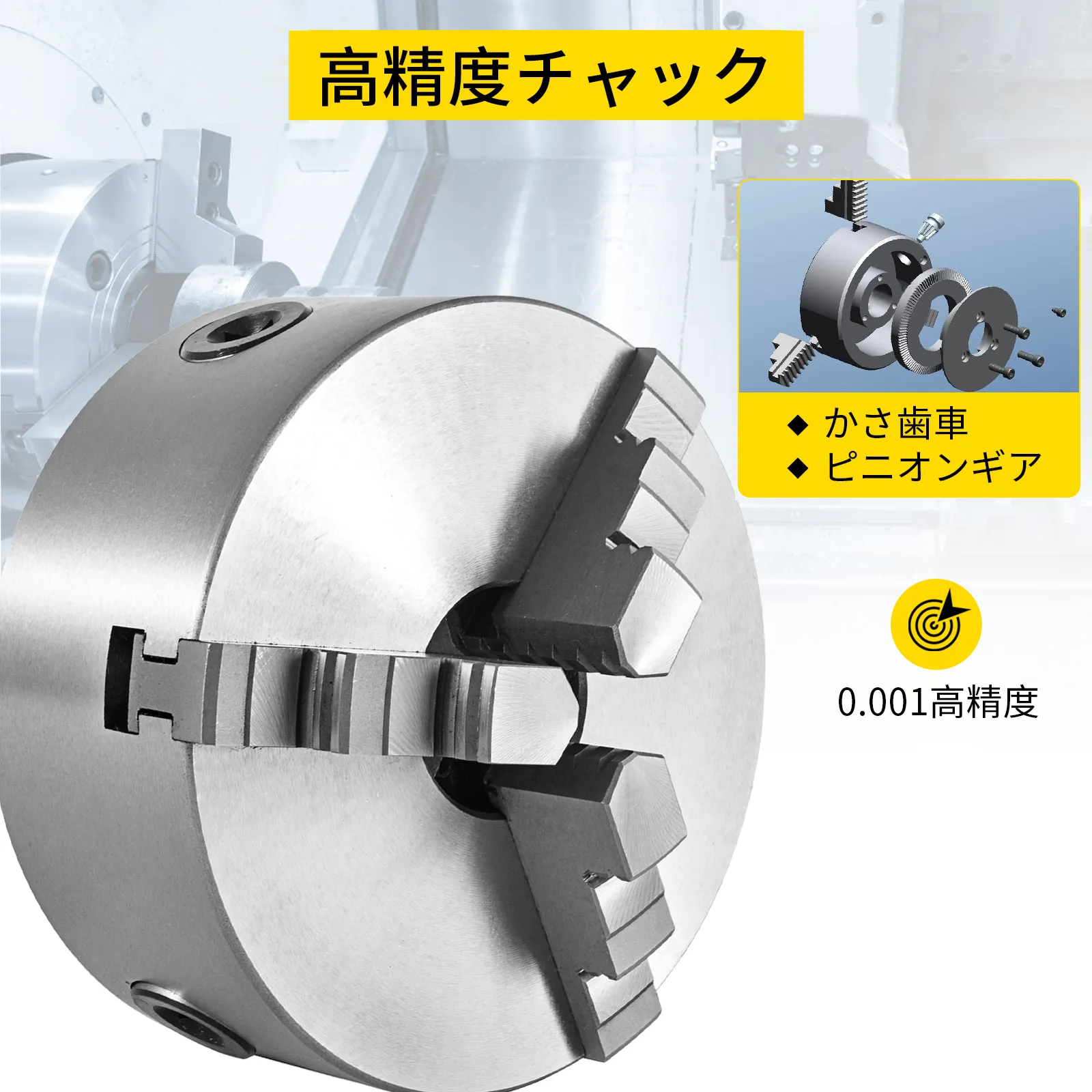

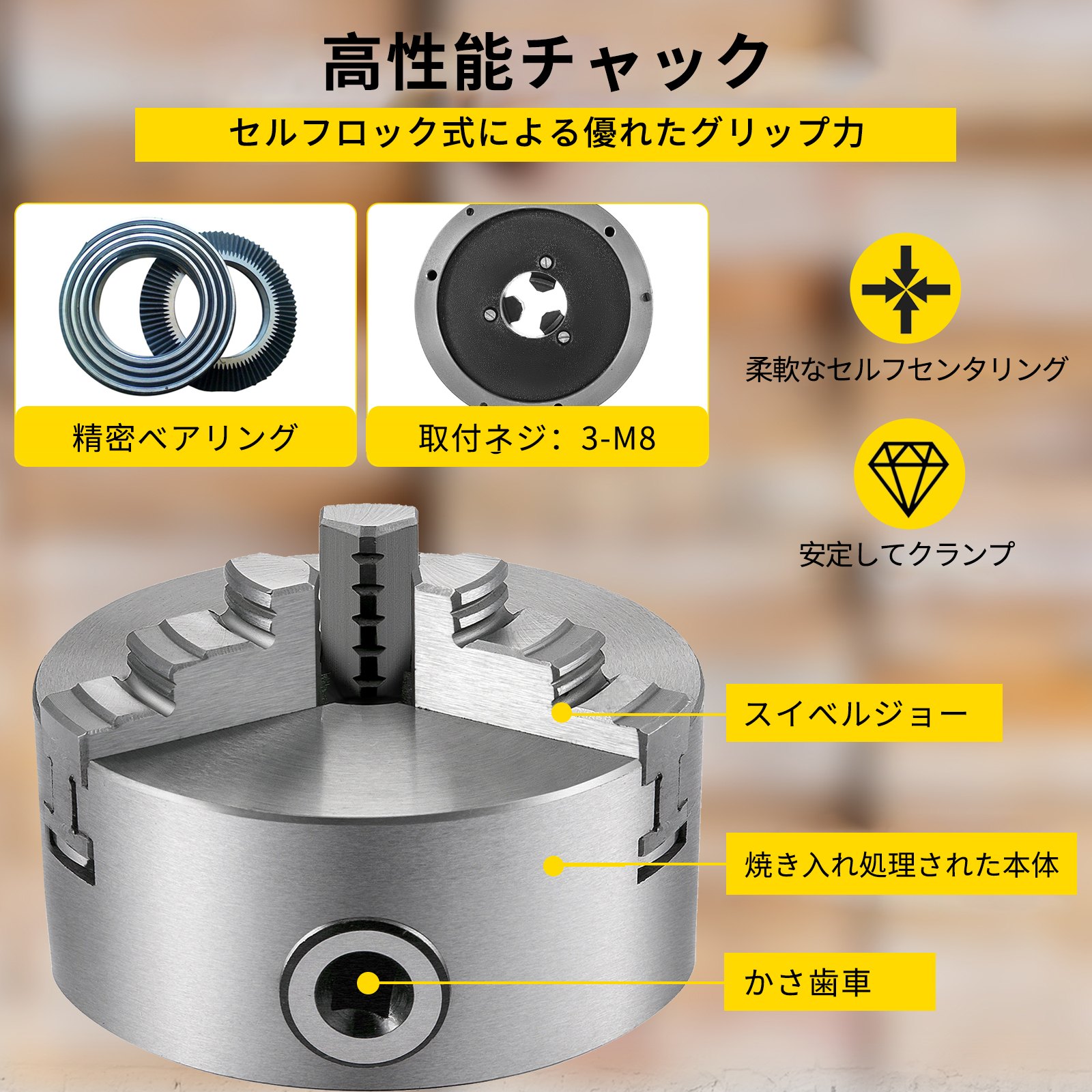

Precision Bevel Gear
When the bevel gear is pulled with a wrench, the thread wood lathe chuck starts to operate, and the bevel gear controls the precision of the work-piece held by the chuck.
VEVOR K11-160 Lathe Chuck 6

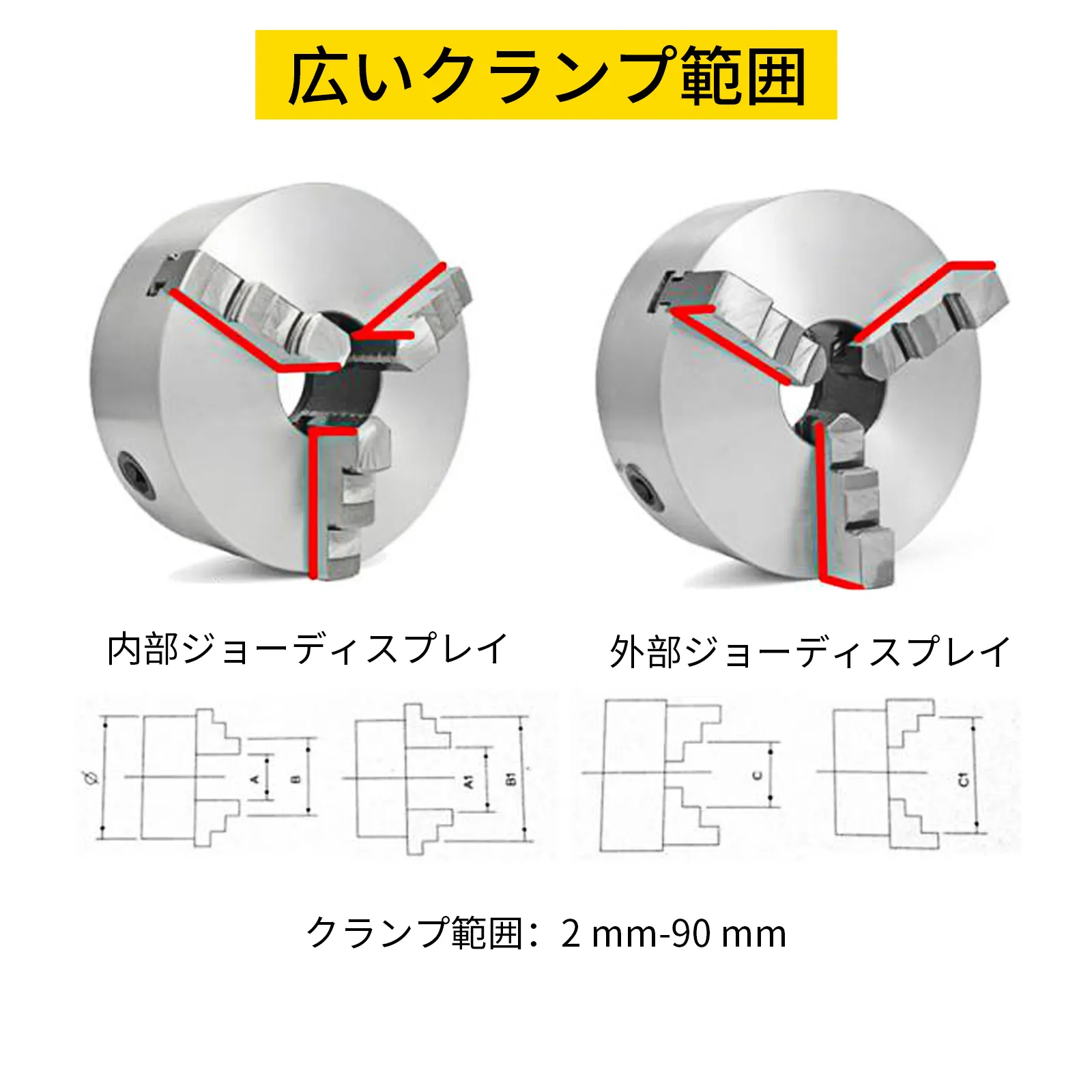

Large Clamping Range
The chuck has two sets of internal and external jaws. This chuck has a large clamping range and is suitable for clamping a variety of industrial parts.
VEVOR K11-160 Lathe Chuck 6

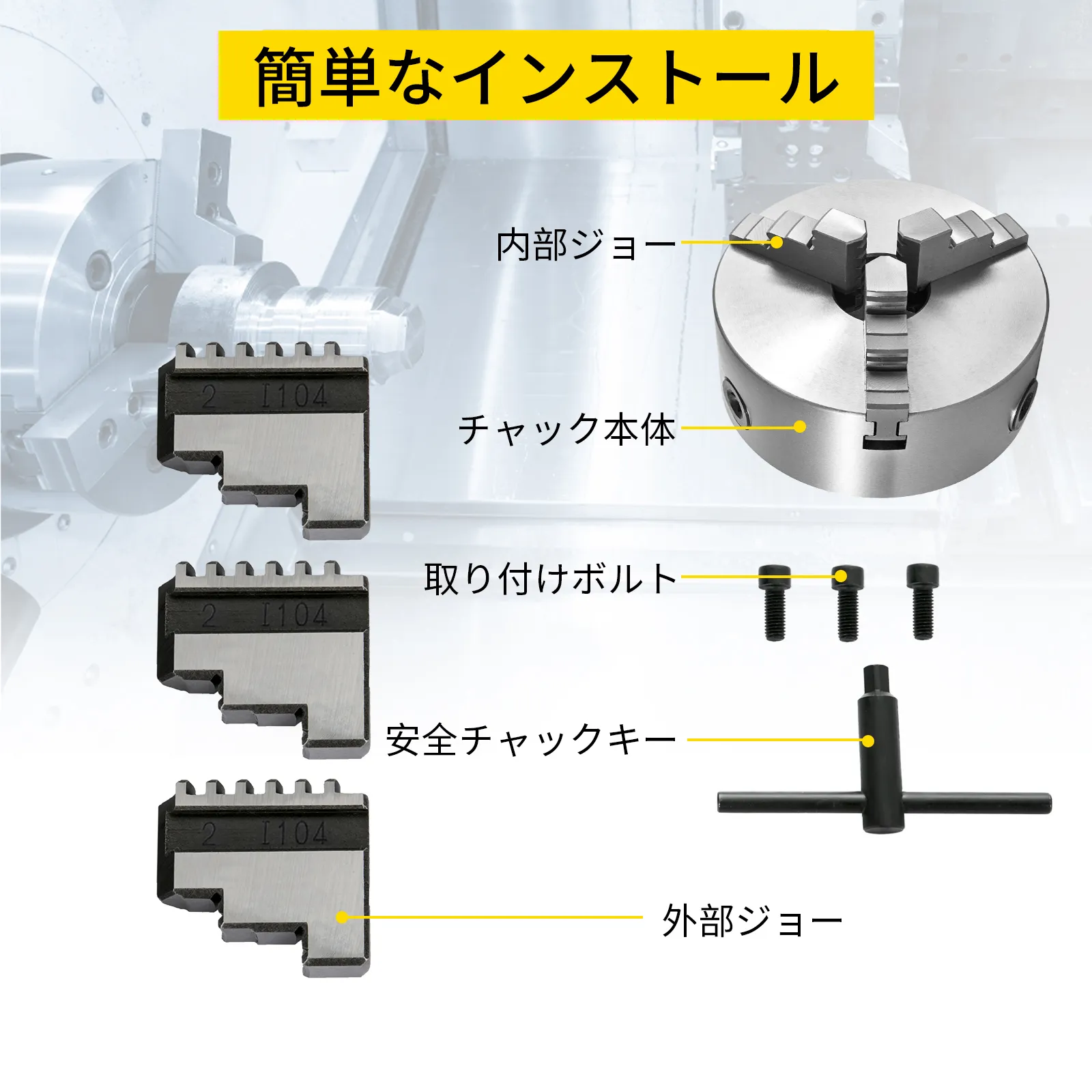

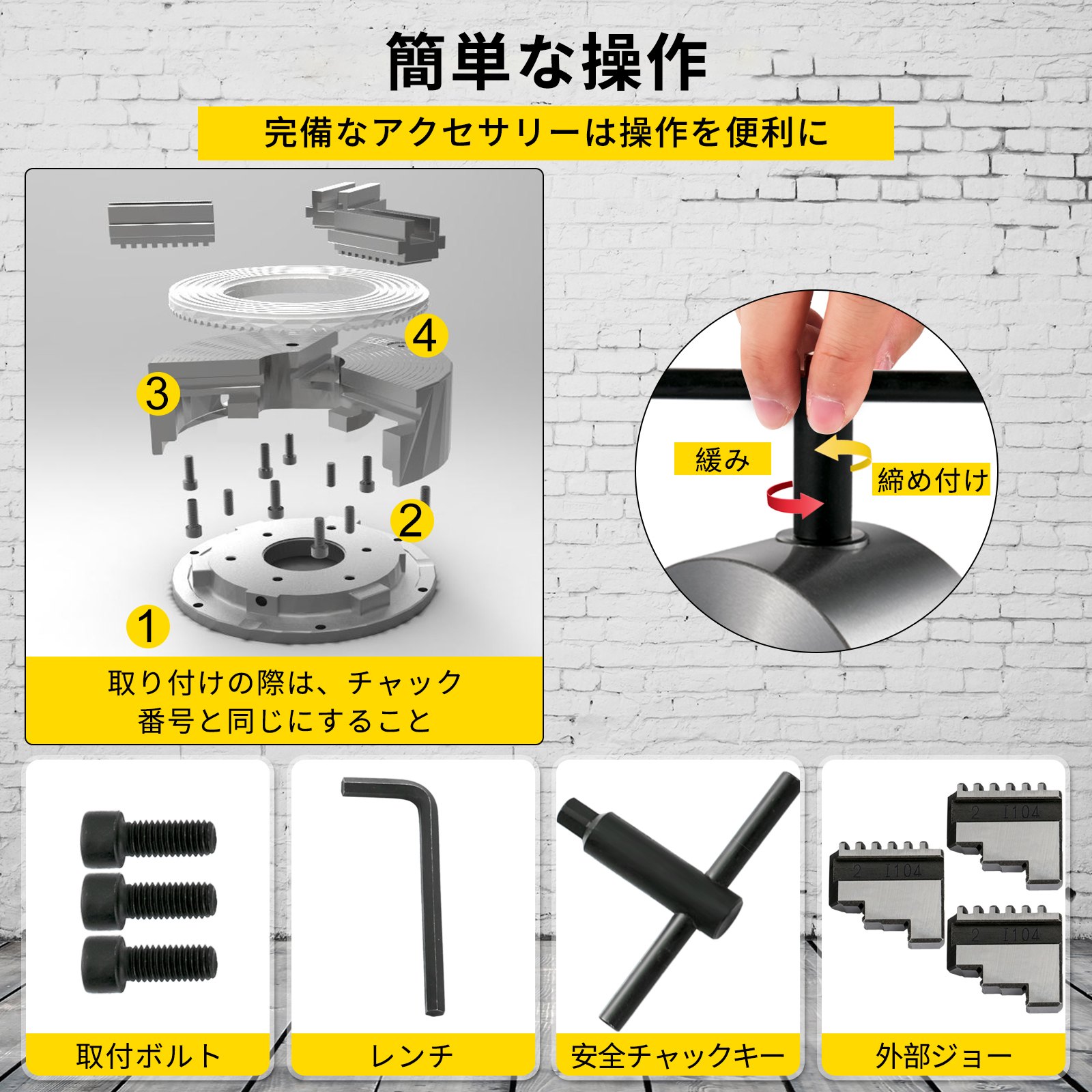

Easy Installation
This mini lathe chuck is composed of a chuck body, a movable chuck, and a claw drive. Because the chuck is self-centering and requires no calibration, installation is simple and quick.
VEVOR K11-160 Lathe Chuck 6

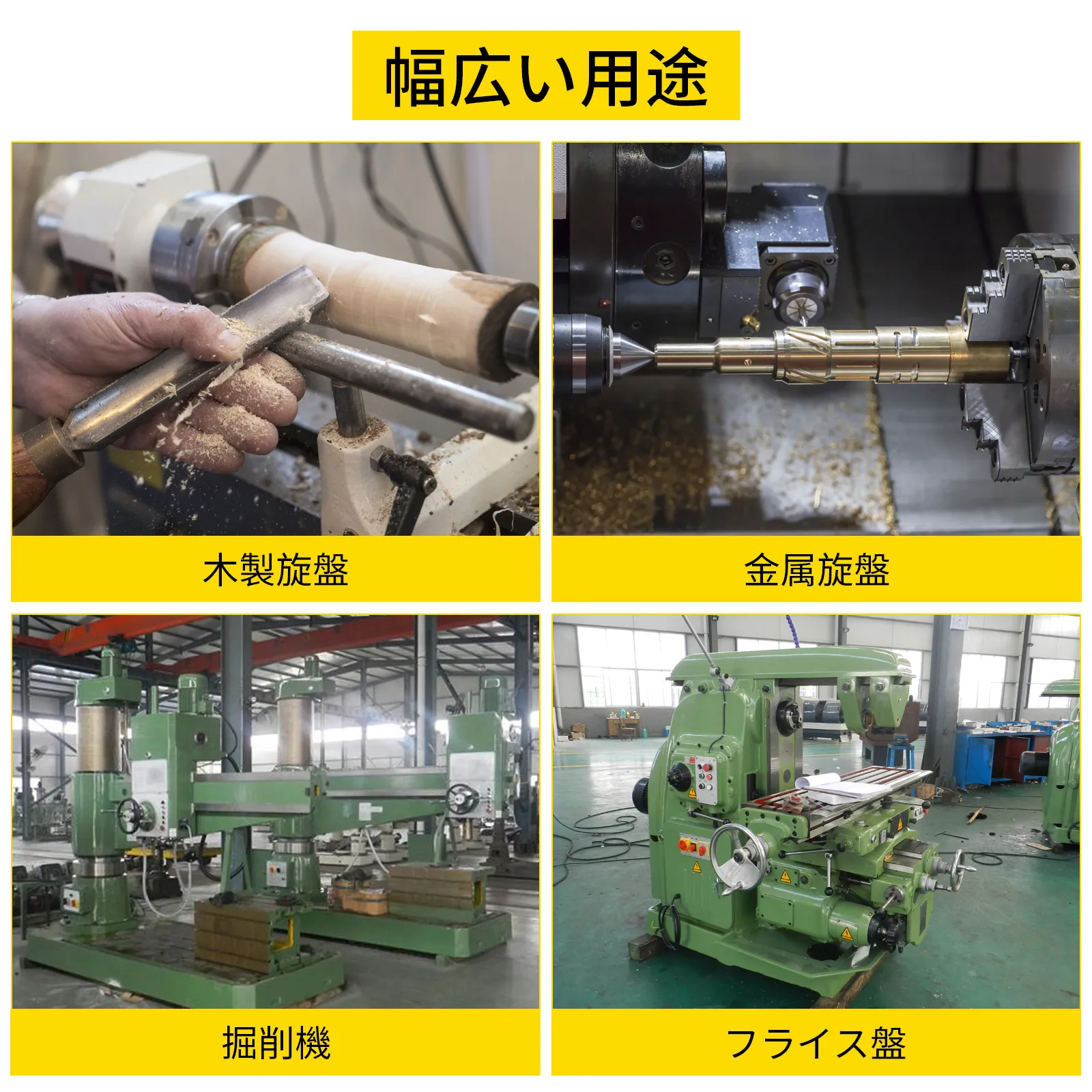

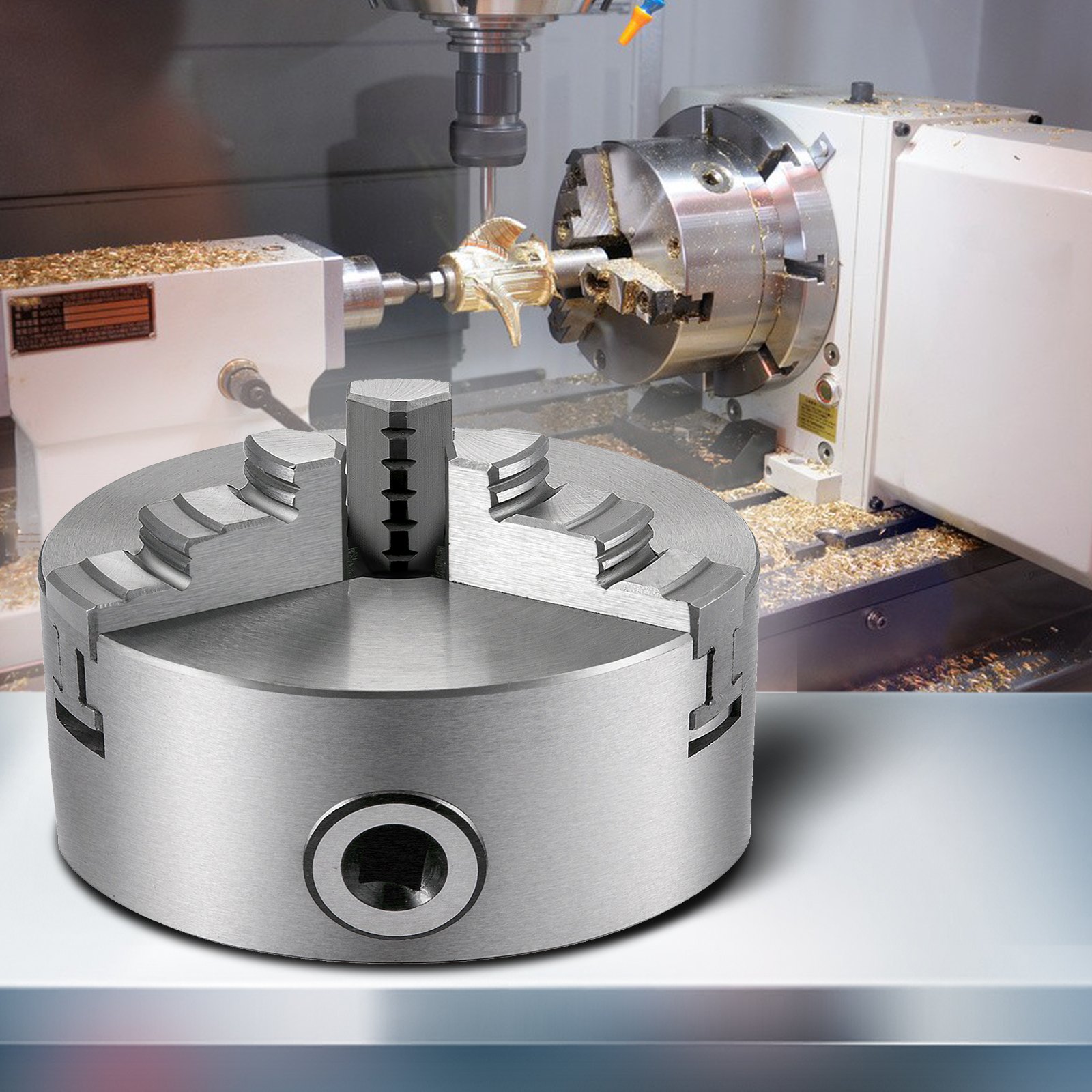

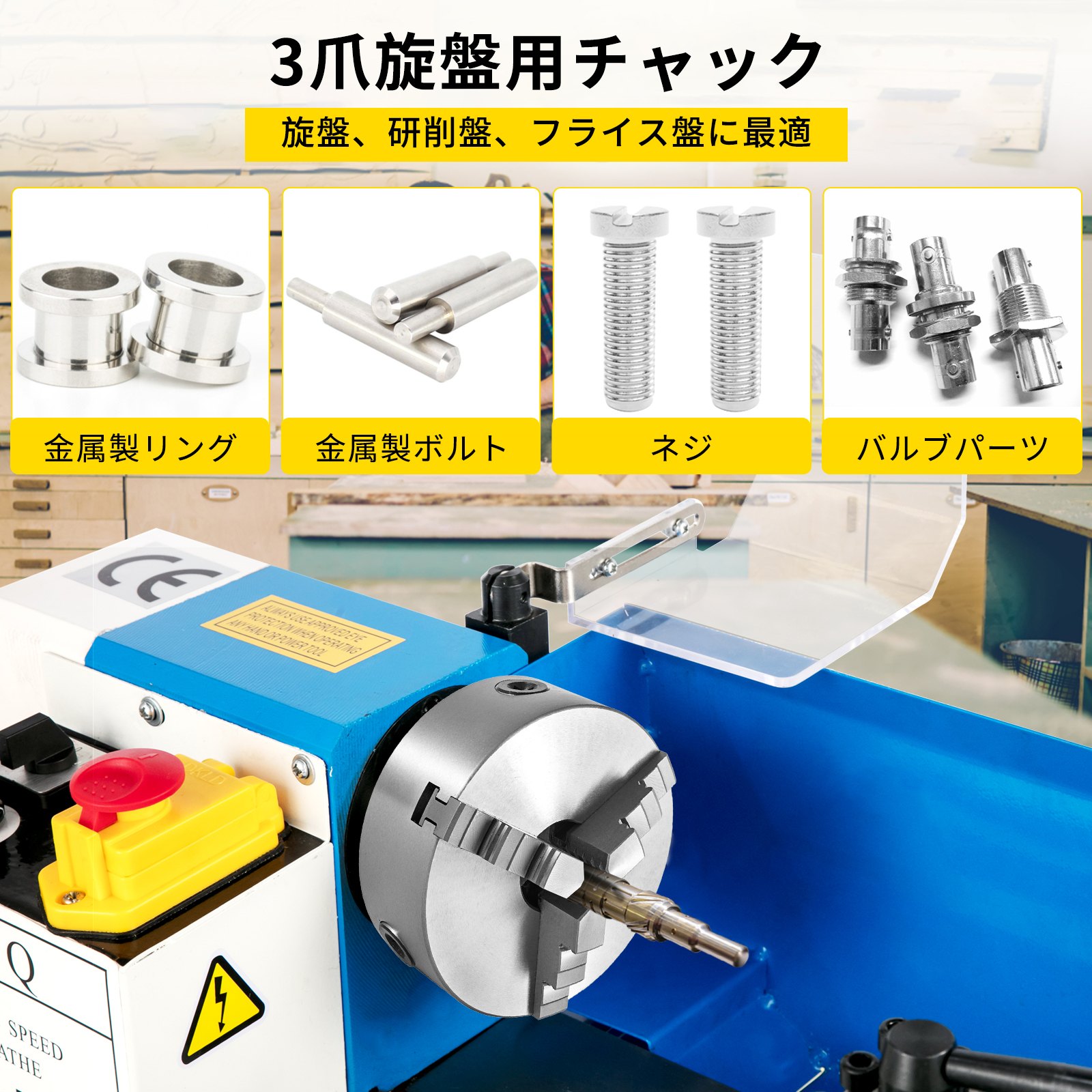

Wide Application
The 3 jaw lathe chuck is suitable for a variety of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
VEVOR K11-160 Lathe Chuck 6

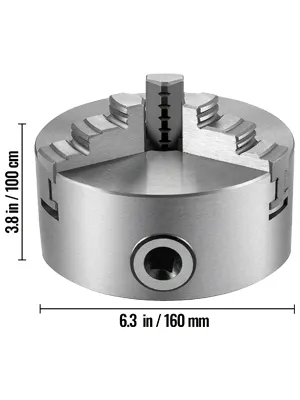

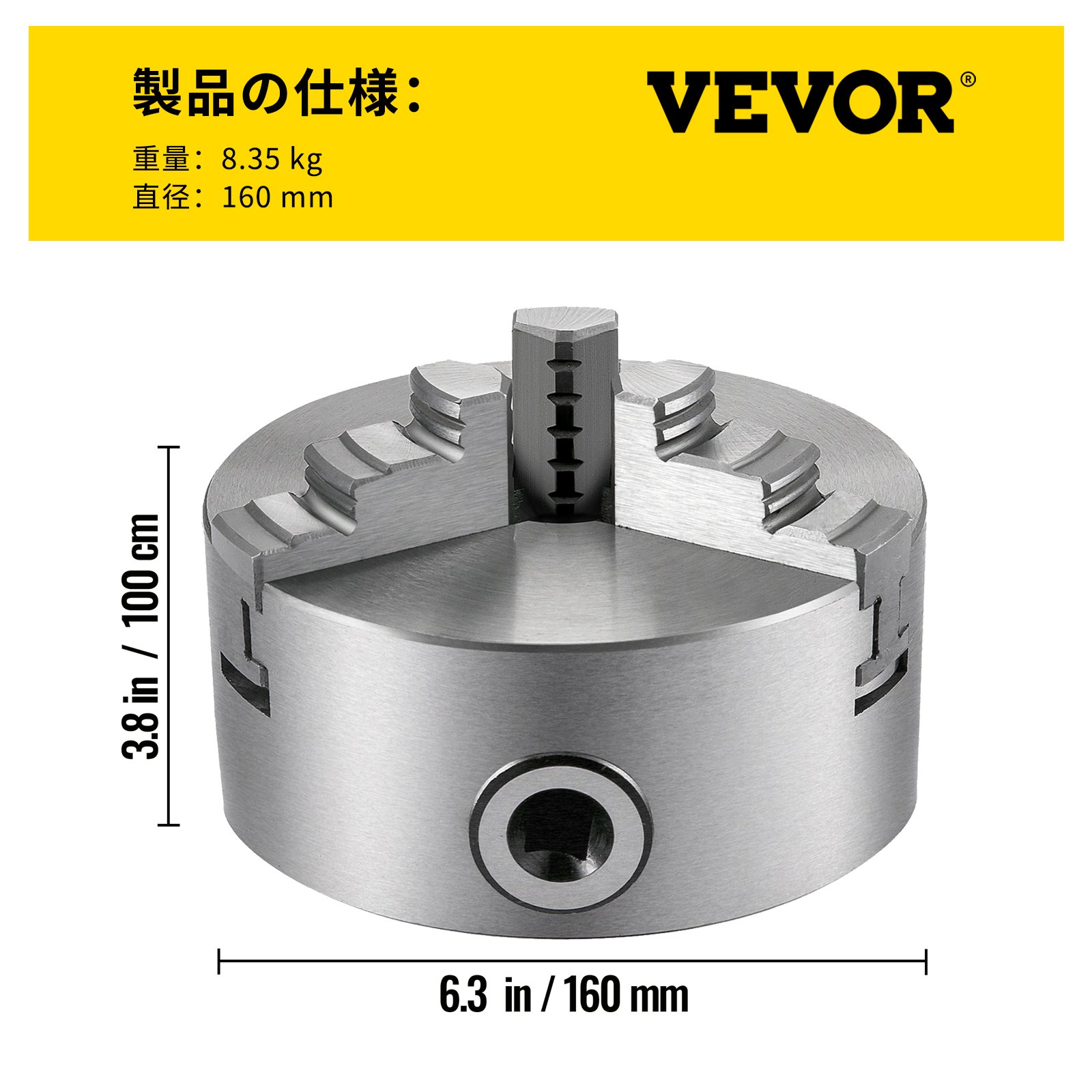

Specifications
  • Material: Hardened Steel
  • Model: K11-160
  • Jaw: 3 Jaw
  • High Precision: ≤0.002" / 0.05 mm
  • Color: Silver
  • Mounting Thread: 3-M8
  • Lathe Chuck
  • Size: 6.3" / 160 mm
  • Outside Diameter: 6.3" / 160 mm
  • Bolt Circle Diameter: 5.59" / 142 mm
  • Center Thru Hole Diameter: 1.77" / 45 mm
  • Chuck Body Thickness: 2.56" / 65 mm

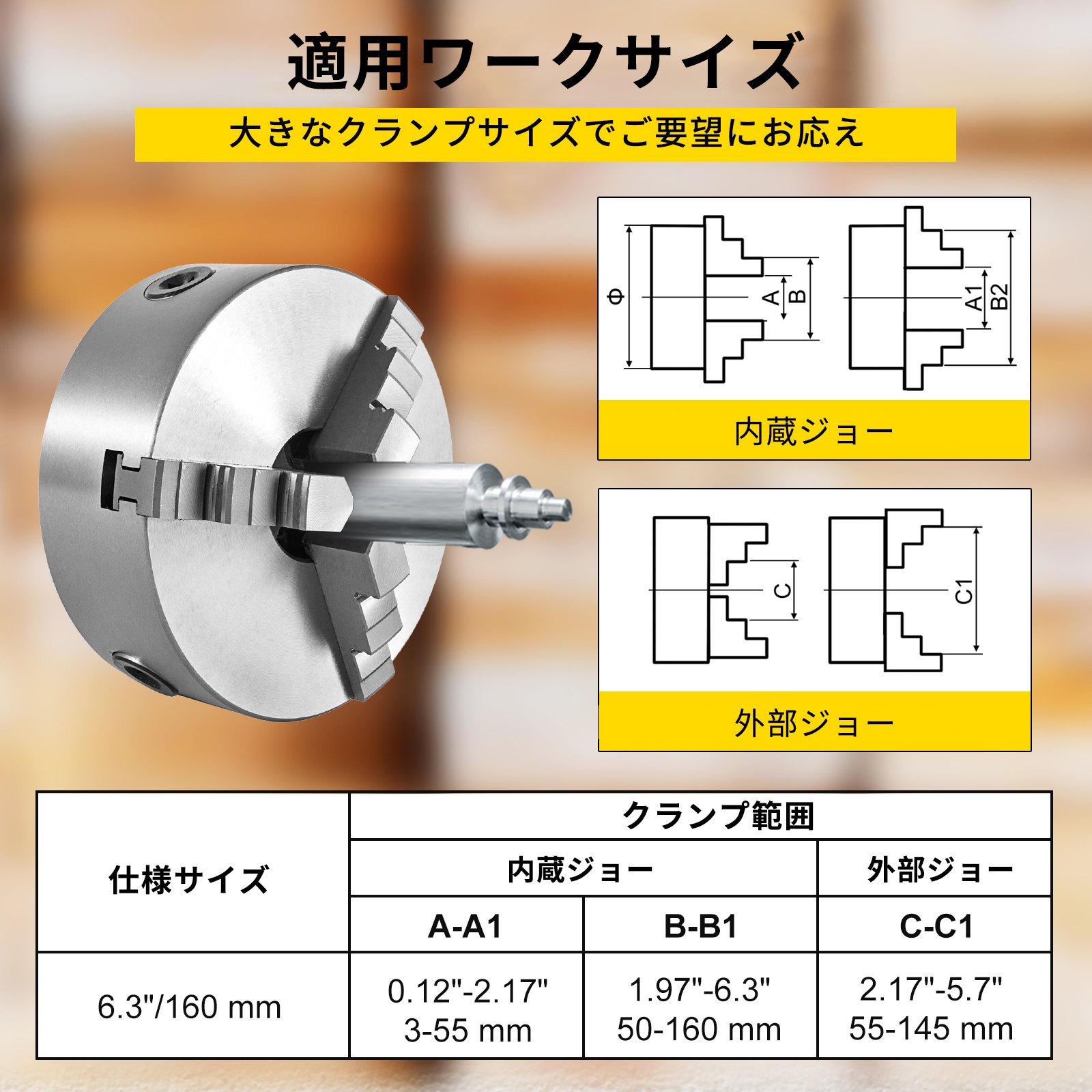

  • Internal Jaw Clamping Range (A-A1): 0.12"-2.17" / 3-55 mm
  • Internal Jaw Jamming Range (B-B1): 1.97"-6.3" / 50-160 mm
  • External Jaw Clamping Range (C-C1): 2.17"-5.7" / 55-145 mm
  • Accuracy: 0.002" / 0.051 mm
  • Item Weight: 18.4 lbs / 8.35 kg
  • Package Dimensions (L x W x H): 8.3" x 8.3" x 6.7" / 21 x 21 x 17 cm
VEVOR K11-160 Lathe Chuck 6

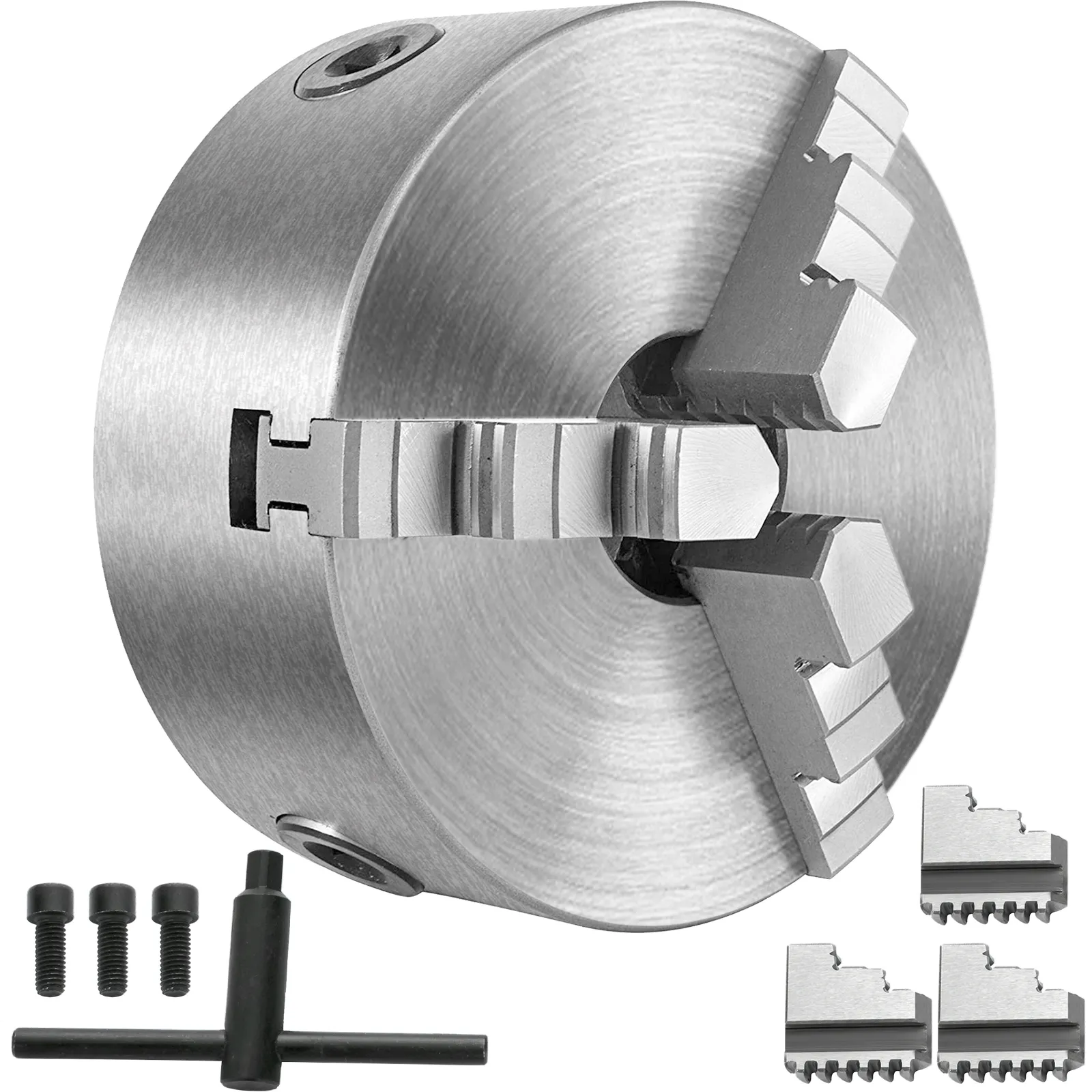

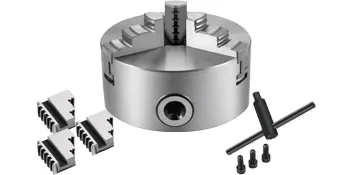

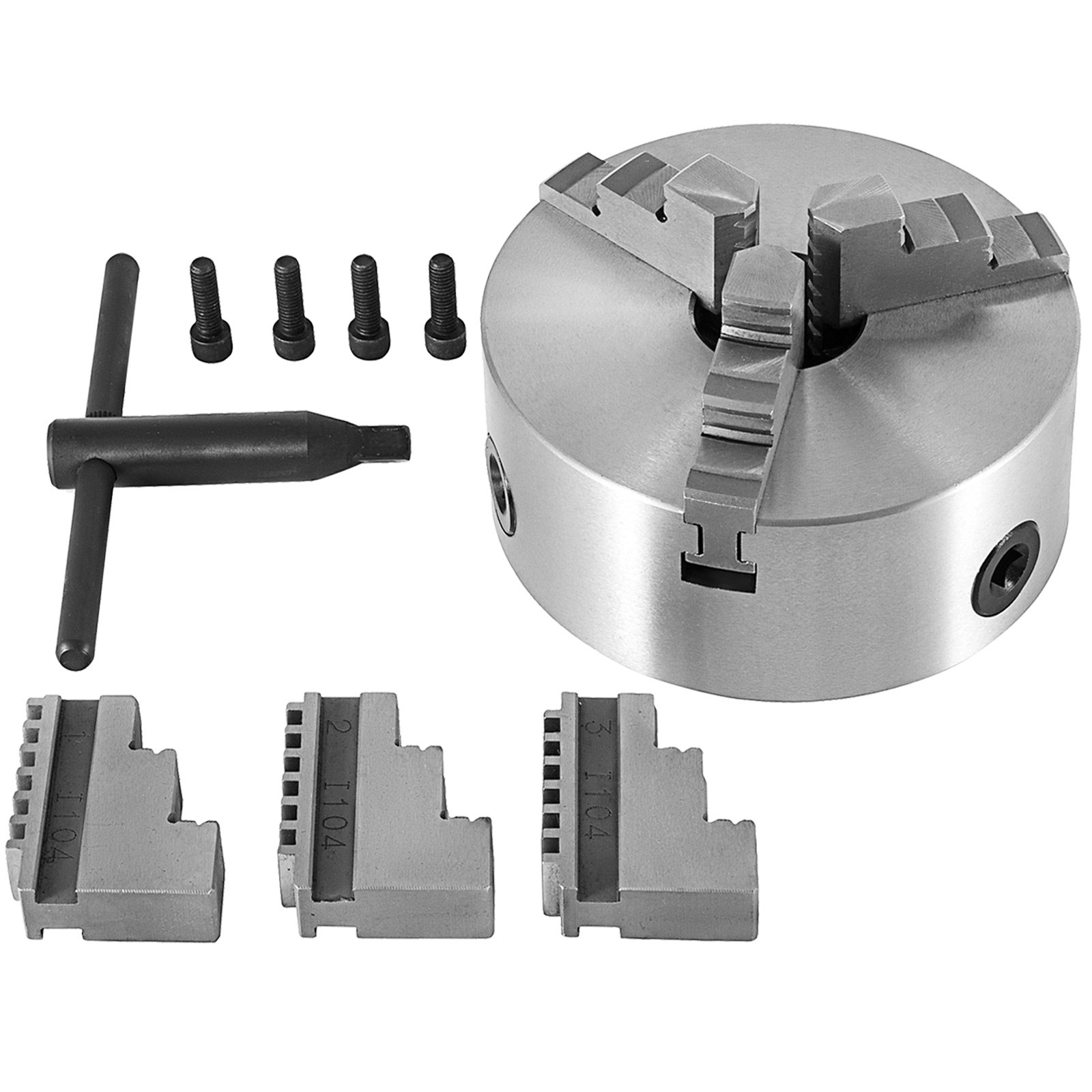

Package Content
  • 1 x 6.3" / 160 mm Lathe Chuck Body
  • 3 x Internal Jaws
  • 3 x External Jaws
  • 3 x Mounting Bolts
  • 1 x Chuck Key
VEVOR K11-160 Lathe Chuck 6
VEVOR K11-160 Lathe Chuck 6

VEVOR K11-160 Lathe Chuck 6
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR K11-160 Lathe Chuck 6
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR K11-160 Lathe Chuck 6
6.3-inch 3 Jaw Lathe Chuck
Self Centering & 0.002" High Accuracy & with Two Sets of Jaws
  • This versatile chuck is made of high-quality hardened steel, compression resistance and has a long service life. It has two sets of jaws that can hold industrial parts in the range of 0.12" / 3 mm - 6.3" / 160 mm. Of course, this chuck self-centering function can save the trouble of repeated calibration during installation. This chuck is easy to install and easy to operate. It is suitable for all kinds of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
  • Quality Material
  • High Precision
  • 2 Sets of Jaws
  • Fast Clamping Speed
  • High Adaptability
VEVOR K11-160 Lathe Chuck 6
Hardened Steel
All guide rails and bearing surfaces of this jaw self-centering keyed chuck are precision-machined and have passed the HRC 58-62 test.
VEVOR K11-160 Lathe Chuck 6
Self Centering
Because the pitch of the flat rectangular thread is equal, the three claws have the same movement distance, which has the function of automatic centering.
VEVOR K11-160 Lathe Chuck 6
Precision Bevel Gear
When the bevel gear is pulled with a wrench, the thread wood lathe chuck starts to operate, and the bevel gear controls the precision of the work-piece held by the chuck.
VEVOR K11-160 Lathe Chuck 6
Large Clamping Range
The chuck has two sets of internal and external jaws. This chuck has a large clamping range and is suitable for clamping a variety of industrial parts.
VEVOR K11-160 Lathe Chuck 6
Easy Installation
This mini lathe chuck is composed of a chuck body, a movable chuck, and a claw drive. Because the chuck is self-centering and requires no calibration, installation is simple and quick.
VEVOR K11-160 Lathe Chuck 6
Wide Application
The 3 jaw lathe chuck is suitable for a variety of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.
VEVOR K11-160 Lathe Chuck 6
Package Content
  • 1 x 6.3" / 160 mm Lathe Chuck Body
  • 3 x Internal Jaws
  • 3 x External Jaws
  • 3 x Mounting Bolts
  • 1 x Chuck Key
VEVOR K11-160 Lathe Chuck 6
Specifications
  • Material: Hardened Steel
  • Model: K11-160
  • Jaw: 3 Jaw
  • High Precision: ≤0.002" / 0.05 mm
  • Color: Silver
  • Mounting Thread: 3-M8
  • Lathe Chuck
  • Size: 6.3" / 160 mm
  • Outside Diameter: 6.3" / 160 mm
  • Bolt Circle Diameter: 5.59" / 142 mm
  • Center Thru Hole Diameter: 1.77" / 45 mm
  • Chuck Body Thickness: 2.56" / 65 mm
  • Internal Jaw Clamping Range (A-A1): 0.12"-2.17" / 3-55 mm
  • Internal Jaw Jamming Range (B-B1): 1.97"-6.3" / 50-160 mm
  • External Jaw Clamping Range (C-C1): 2.17"-5.7" / 55-145 mm
  • Accuracy: 0.002" / 0.051 mm
  • Item Weight: 18.4 lbs / 8.35 kg
  • Package Dimensions (L x W x H): 8.3" x 8.3" x 6.7" / 21 x 21 x 17 cm

Specification

Material
Hardened Steel
Model
K11-160
Jaw
3 Jaw
High Precision
≤0.002" / 0.05 mm
Color
Silver
Mounting Thread
3-M8
Lathe Chuck
Size
6.3" / 160 mm
Outside Diameter
6.3" / 160 mm
Bolt Circle Diameter
5.59" / 142 mm
Center Thru Hole Diameter
1.77" / 45 mm
Chuck Body Thickness
2.56" / 65 mm
Internal Jaw Clamping Range (A-A1)
0.12"-2.17" / 3-55 mm
Internal Jaw Jamming Range (B-B1)
1.97"-6.3" / 50-160 mm
External Jaw Clamping Range (C-C1)
2.17"-5.7" / 55-145 mm
Accuracy
0.002" / 0.051 mm
Item Weight
18.4 lbs / 8.35 kg
Package Dimensions (L x W x H)
8.3" x 8.3" x 6.7" / 21 x 21 x 17 cm
Manual
Download Link
Questions and Answers
1 Questions
Will this work and bolt onto the vevor 7x16 800w metal lathe
Yes, but you need to prepare the flange yourself.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
51 Review(s)
Clear filters
Jan Kent Jan Kent
An 8 inch Diameter 3 Jaw Chuck with reversable jaws, Great for the price.
This mechanical chuck is a bit clunky. The materials, quantity and quality of machine work in this chuck yet produced at such a low cost and delivered to your front door, amazing. These economy tools often need some special TLC first for assembly. More for you buck. Take it apart and smooth deburr the sharp edges you will find most everywhere. A little lube on any bearing pin, Its a great 8 inch Chuck for the price. I installed an D4 adaptor plate on mine to mount on my 14 inch Lathe, This chuck may be too big for smaller lathes. Runs true enough, holds a 2 1/2 inch diameter material into the chuck hole. Machine handles it. Its a great chuck for the price, not my choice for production in a machine shop, but good enough for a home hobbyist. Soft jaws and everything runs perfect..
Grey Wolf - Wolf Clan Welding Grey Wolf - Wolf Clan Welding
Owner
This item completed my home built roll out wheel. Excellent tool. Value for the price and exceptional quality.
Myles Myles
Solid Chuck
I'm not really using it for the standard purpose but it functions as the original on my lathe should. No issues opening and closing it I cleaned and relubed it as I would suggest anyone do when buying anything metal on metal that moves like vices slides ect.
Guy Guy
Lathe chuck 10 inch
Works excellent accurate for my needs easy to use and maintain 1.5 thousands excellent accuracy too
William Smith William Smith
Sent back
Sent back order by mistake
paul dennison paul dennison
Best value
I used the 6” on a welding positioner I made and was able to get it within .002, which is just fine for what I need.
Bill Dudley Bill Dudley
The 12 inch Craftsman Lathe is back.
Turned down the new backing plate to fit this 5 inch Chuck and brought it back to less than 2 thousandth run out on the dial indicator. I was very nervous to try this (absolute amateur) but it came out well. The tightening sequence of the backing plate bolts was the key, set up a dial indicator on a nice round part like a drill bit shank, turn the chuck to find the high spot tighten the variance out, repeat. My old chuck was 90 thousandths plus out, so happy with the new one.
Sheila Murray Sheila Murray
Quality is nice
The quality of the chuck is good, but bought a vevor brand wood lathe and had trouble getting the t bar to mount. Now I have this 4 inch 3jaw chuck that does not have the correct size t handle. I will post a video later.
Robert Aylsworth Robert Aylsworth
Chuck is incomplete
The lathe chick is good but had to go out side of amazon to find a base plate.one will not work with out the other
Joey King Joey King
on time shipping
worked very good
