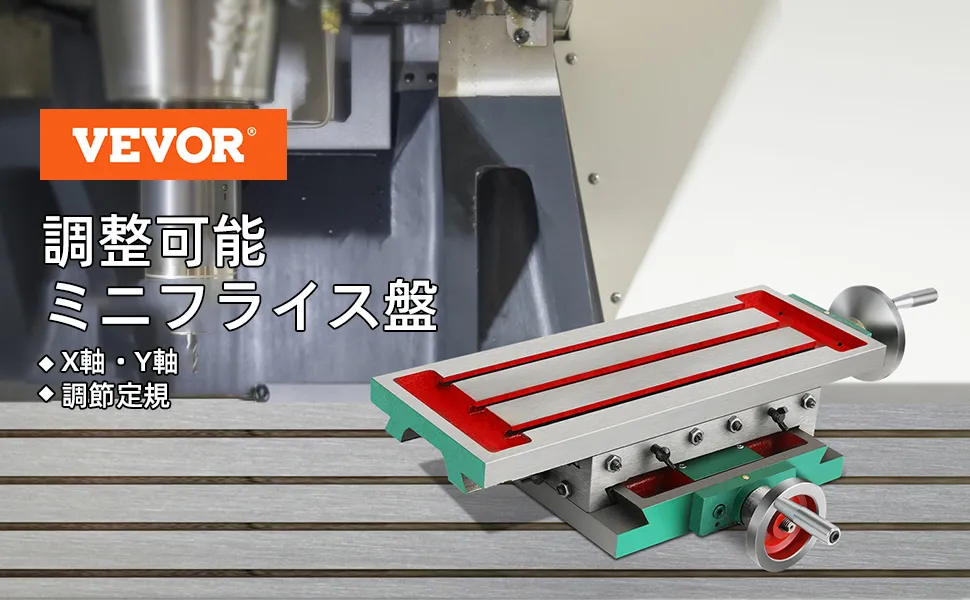

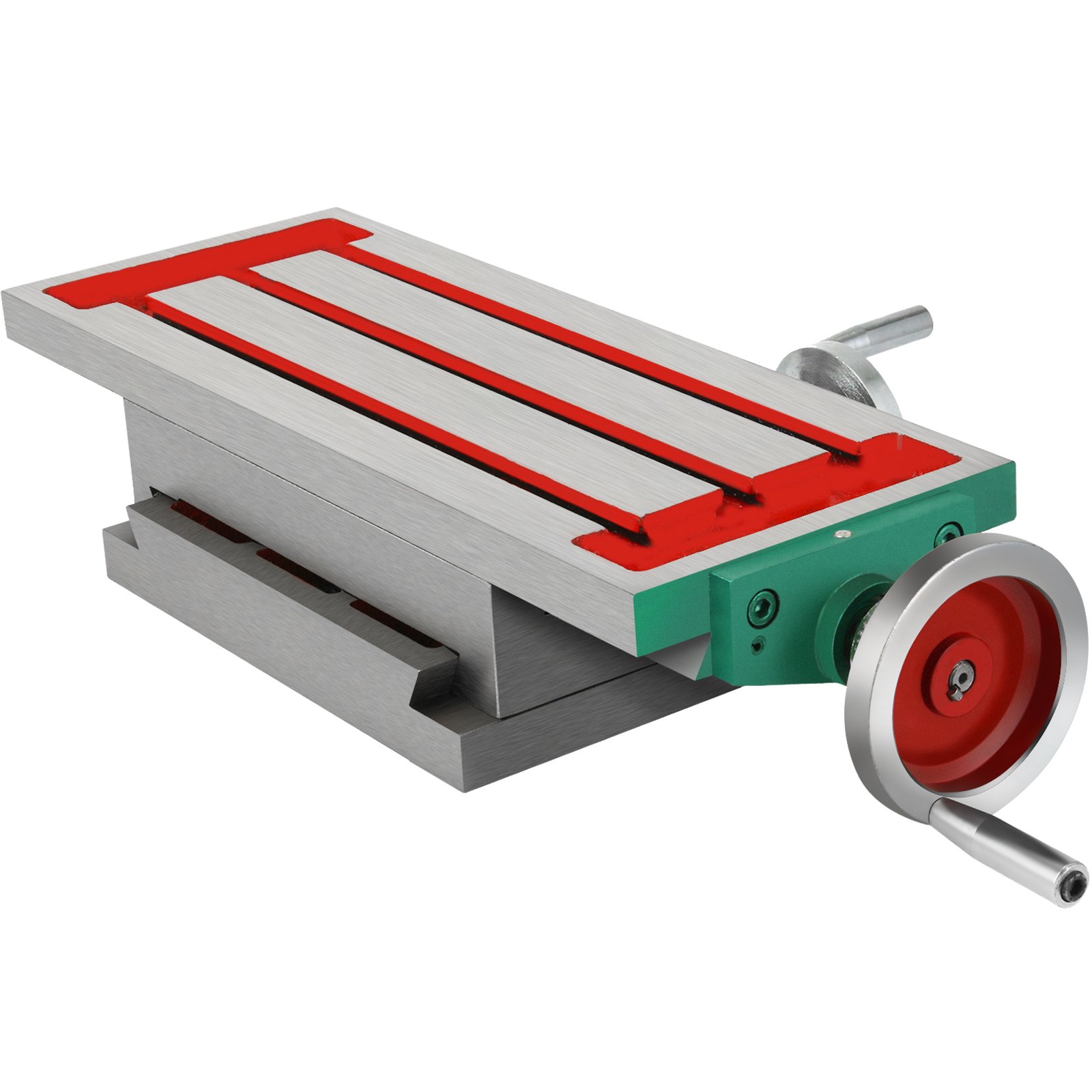

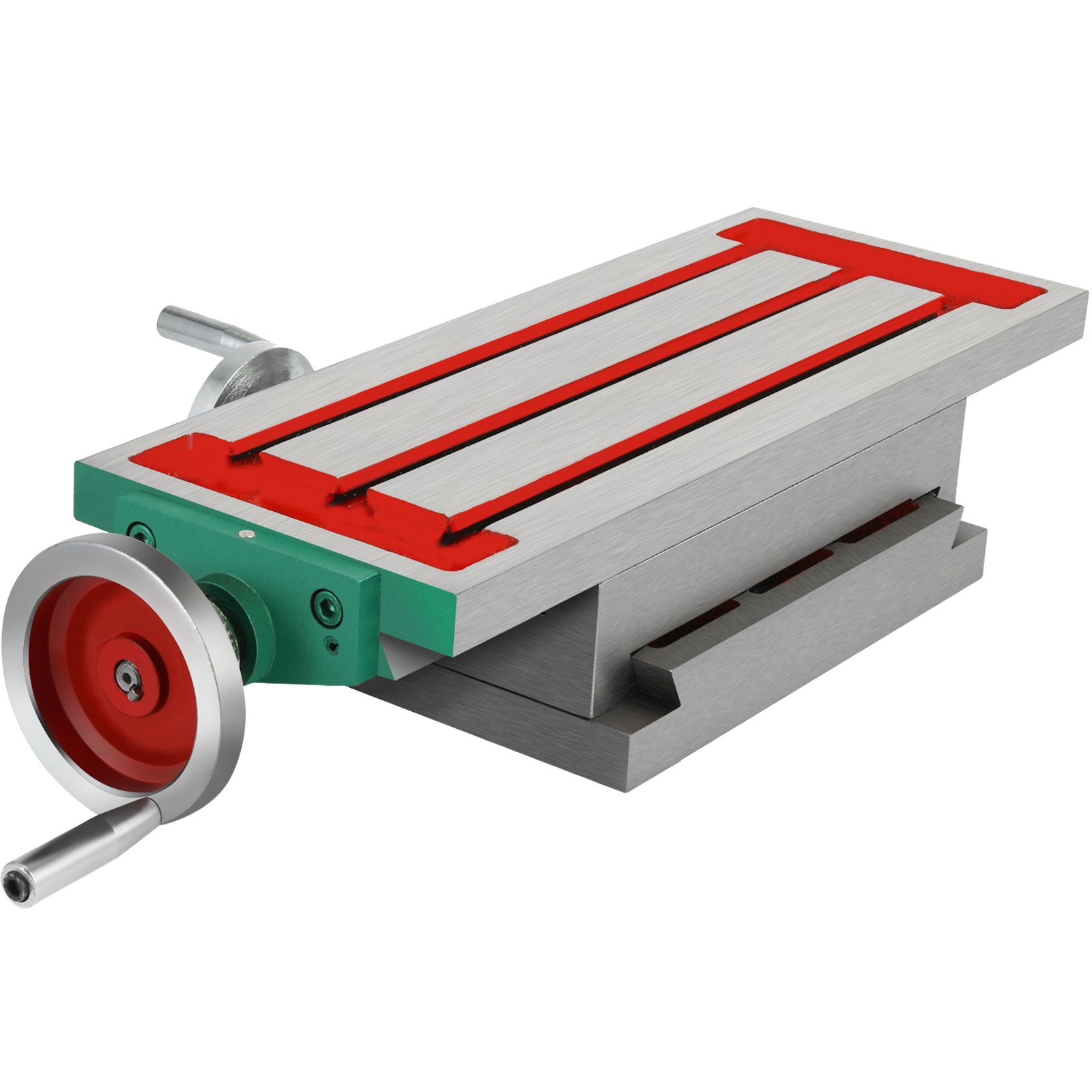

VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
170GZTM0000000001V0

VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine

$130.99
130.99
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.

17.7 x 6.7 inch

  • 17.7 x 6.7 inch
  • 7.3 x 4 inch

About this item

  • Multiple Application: This milling working cross table machine is great for mounting on drilling machines for precise positioning. It can be used for most types of milling and drilling, ideal for all drill stands, drilling, and milling machines. Table Size: 23 x 13 in / 58 x 33 cm
  • Premium Quality Structure: Built by heavy-duty cast iron material, which is anti-corrosion and rust resistance, angle milling table can withstand the tough environment and designed for long service time.
  • Highly Polishing & Stiffness: The compound slide table, with great hardness and stiffness, is high ground and not easy deformation. Three precise T-slots can meet different force requirements.
  • 2 Axis 4 Ways Move: Handles with trapezoidal thread spindles is easy to adjust the directions. X-axis travel: 8.3 in / 210 mm, Y-axis travel: 4.3 in / 110 mm. With a precise scale on it, you can adjust the optimal working position as you need.
  • Tightness Adjustment: Equipped with several quality bolts and nuts, you can easily adjust the tightness of this cross slide table. Convenient for your use.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
17.7 x 6.7 inch
Only 1 Left, order soon
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine

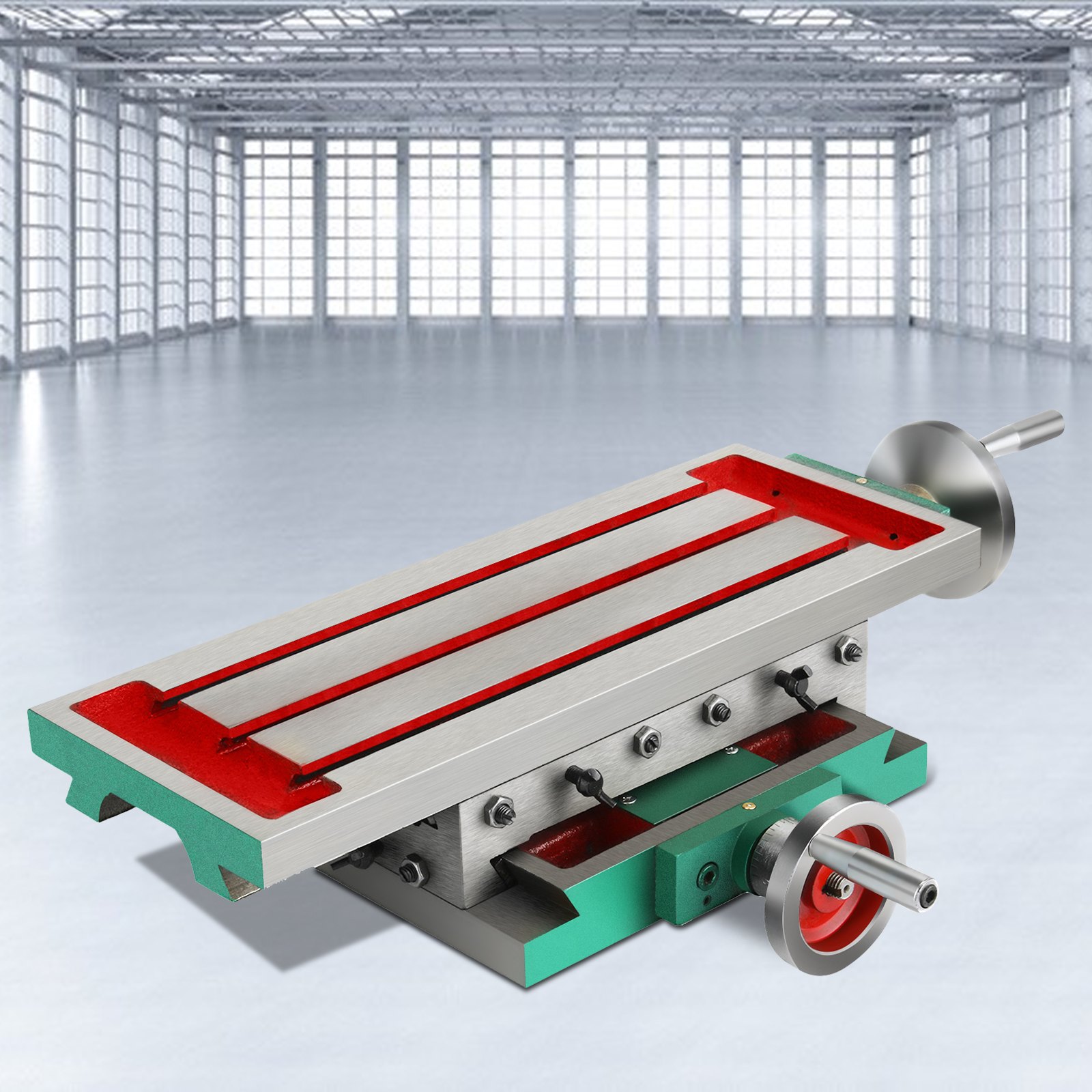

6.7 in / 170 mm Milling Machine Worktable
Large Worktable & Flexible Movement & High Precision
  • The two-axis workbench surface has three T-slots and provides dual-axis (lateral and cross) positioning via two handwheels for precise adjustments. Perfect for drilling grinding and milling operations.
  • Premium Quality Structure
  • Highly Polishing & Stiffness
  • Adjustment in X Y Direction
  • Tightness Adjustment
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine

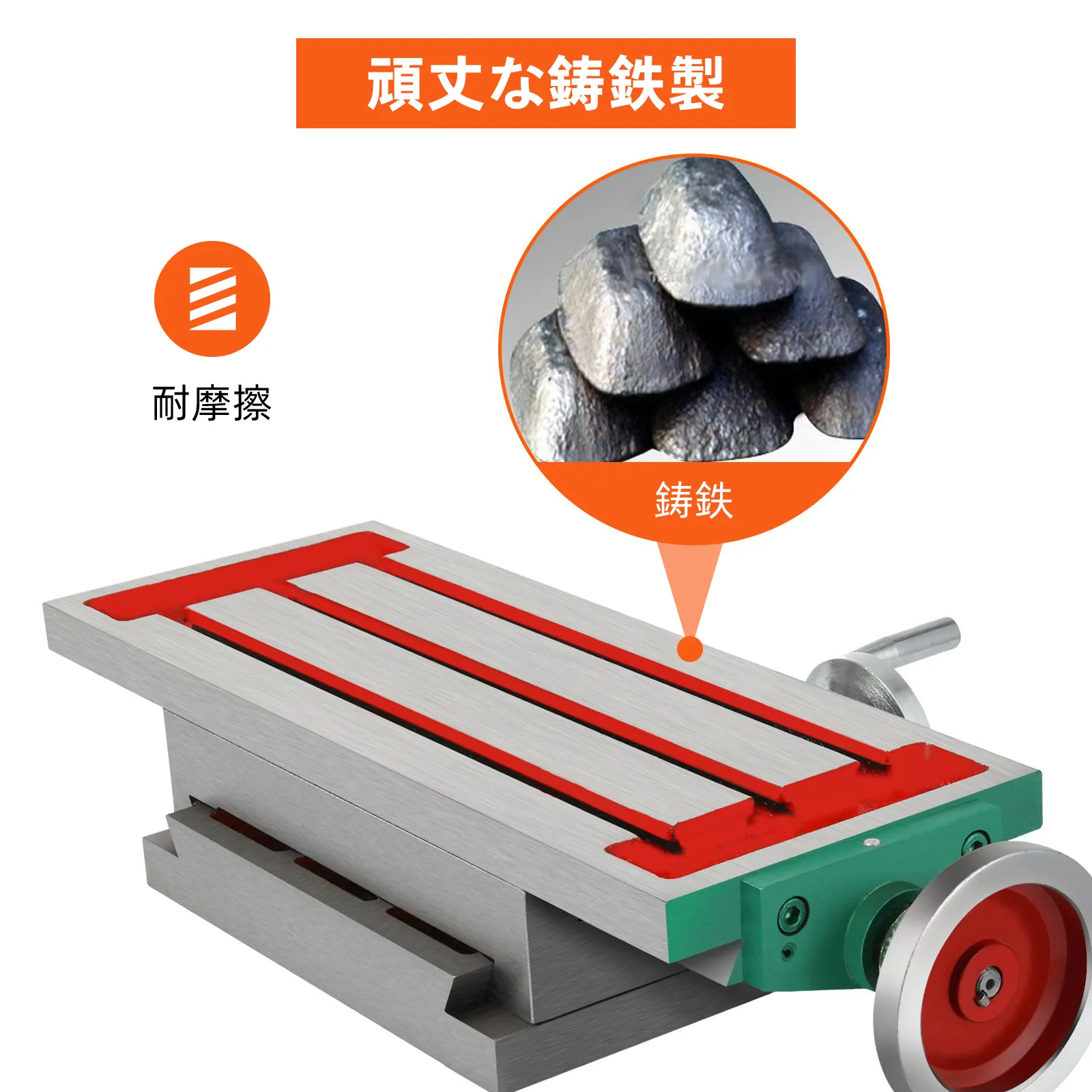

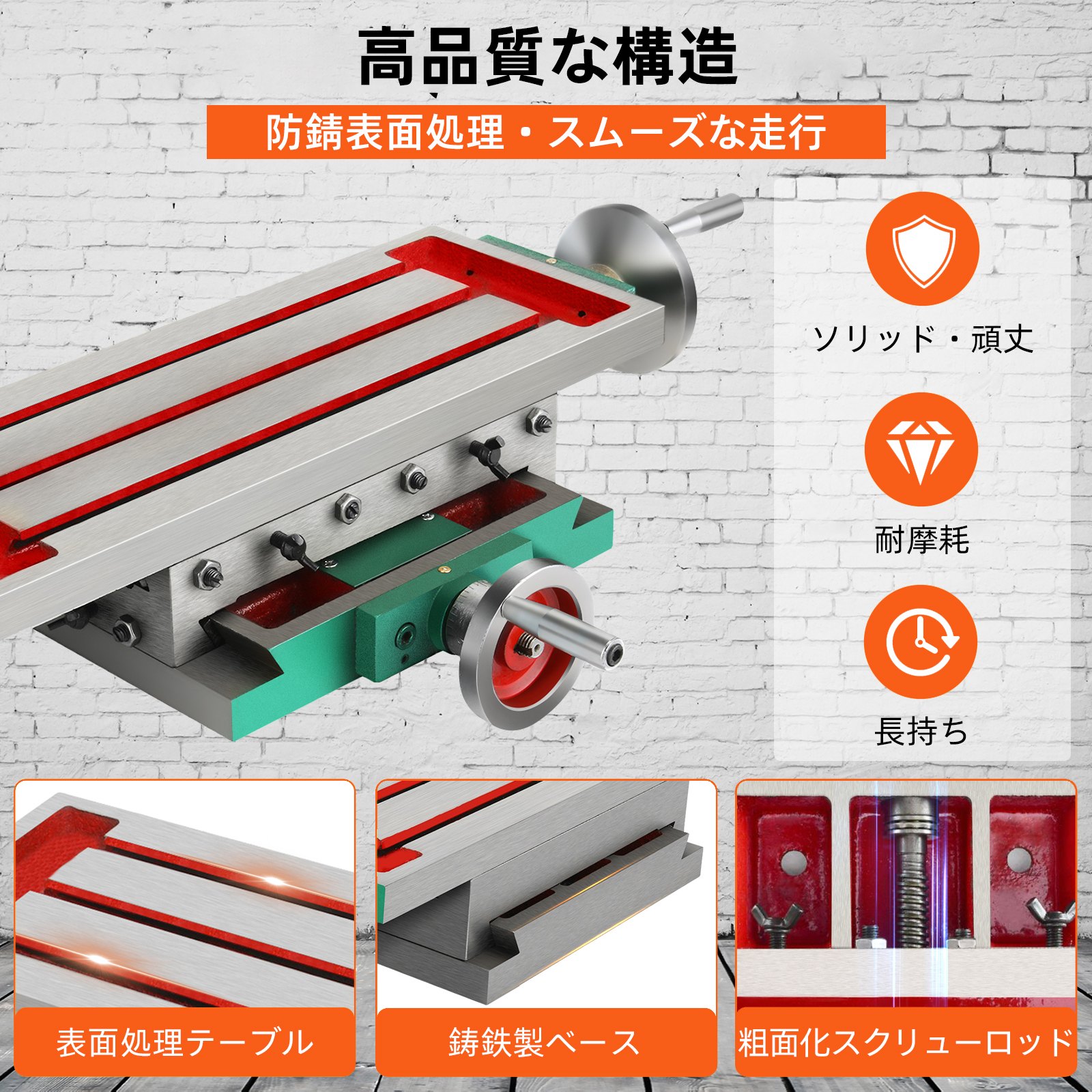

Heavy-duty Cast Iron
Made of quality cast iron, which is anti-corrosion and rust resistance, more durable and ensures long service time.
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine

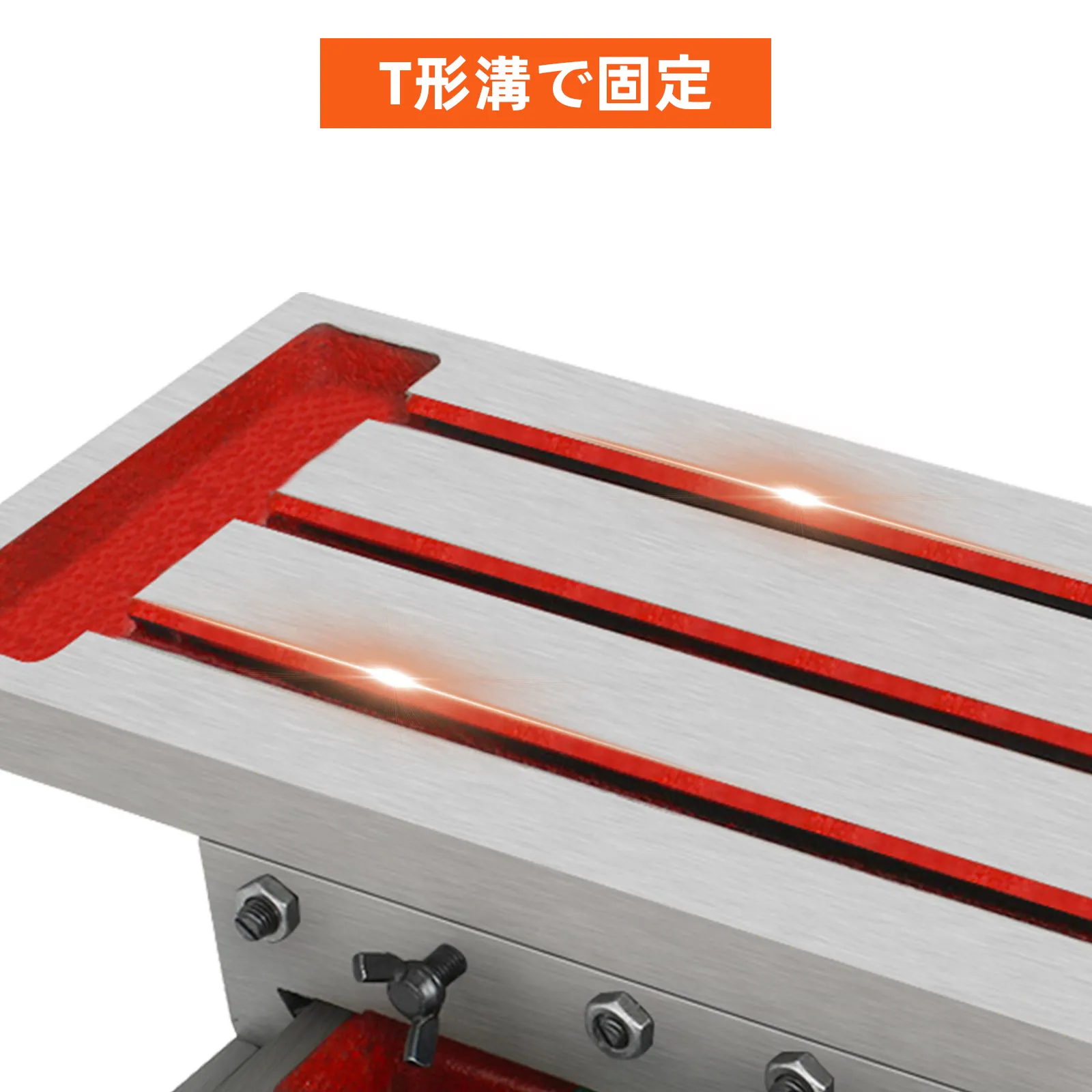

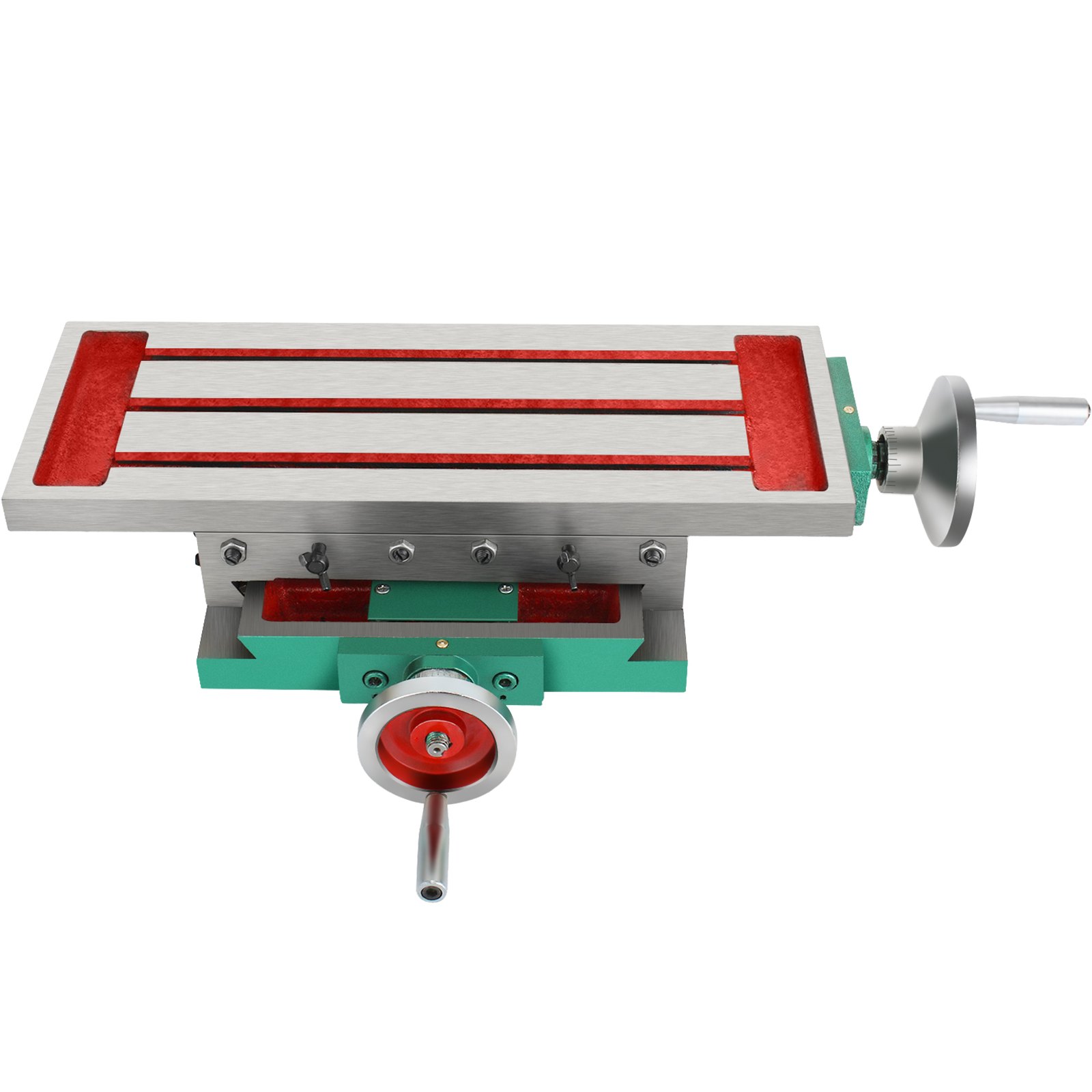

T Groove Fixing Design
The compound table, with great hardness and stiffness, is high ground and not easy deformation. Three T-slots design can meet different force requirements.
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine

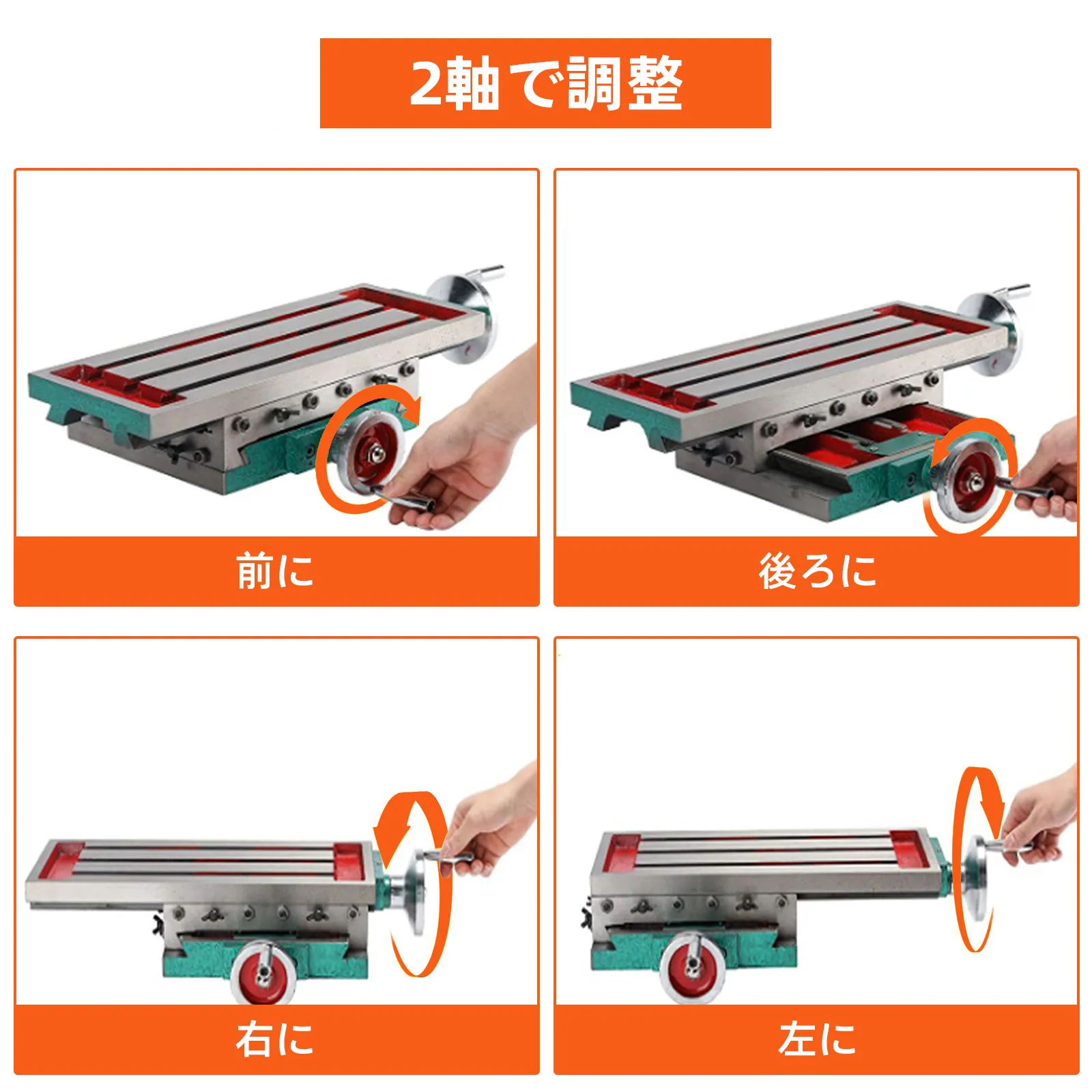

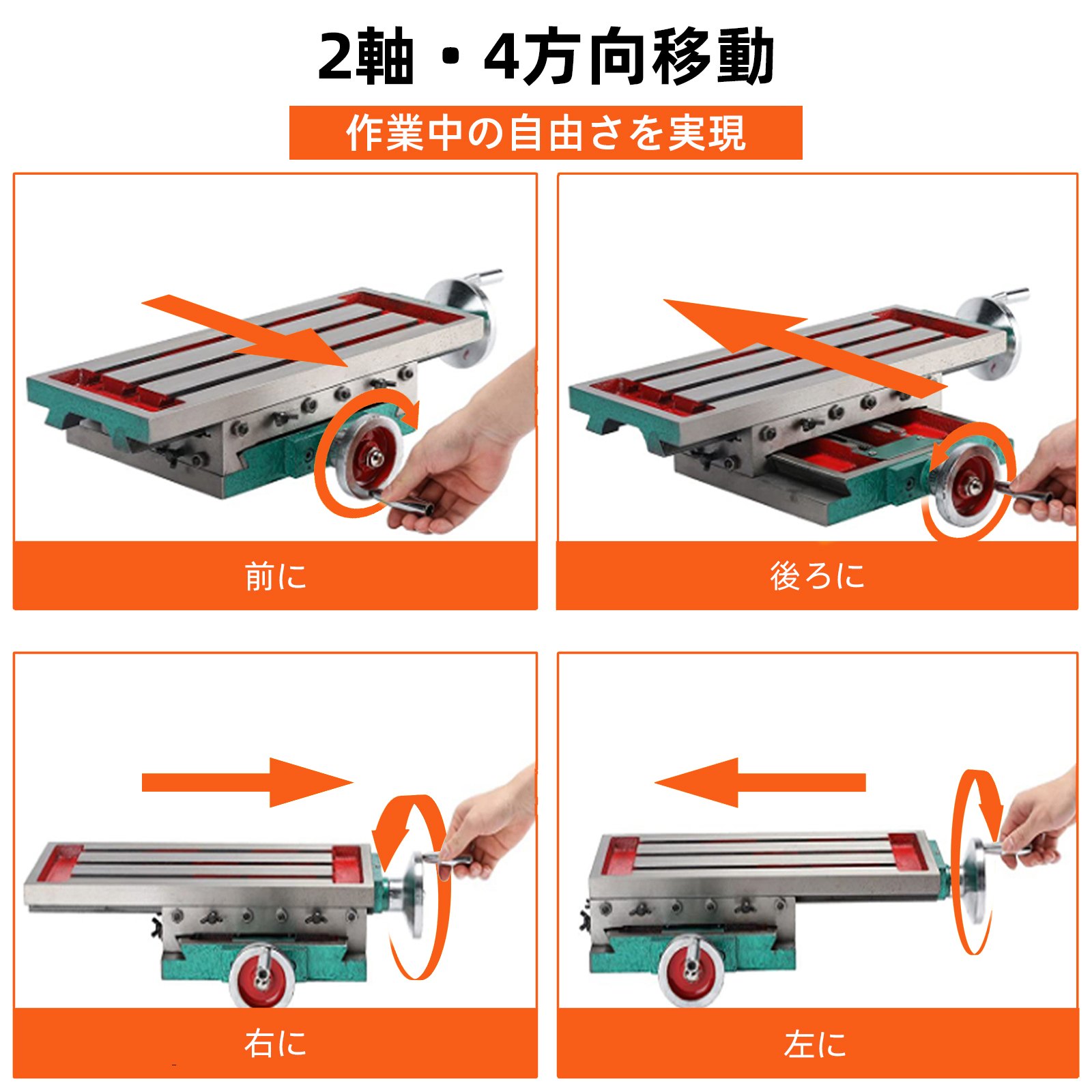

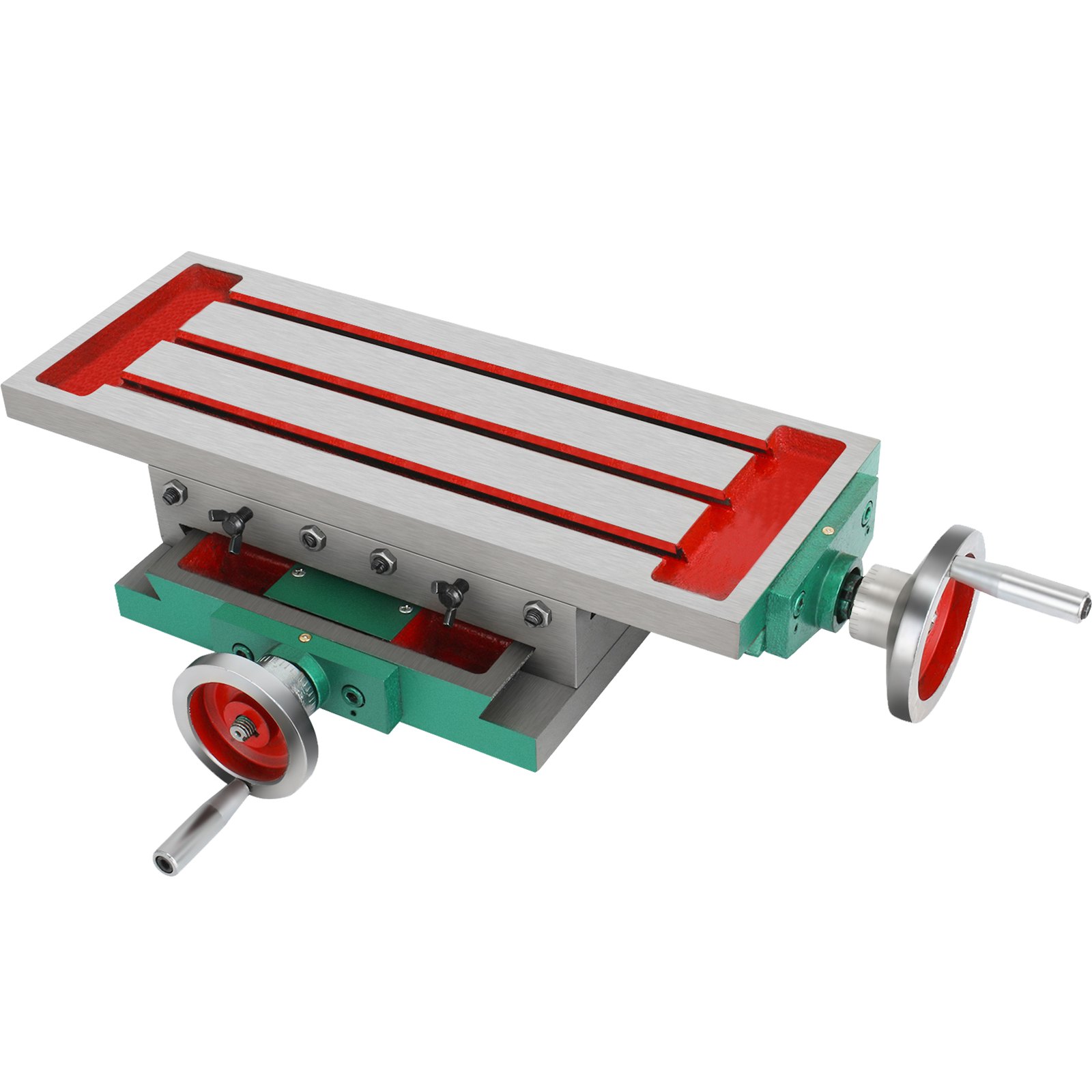

2 Axis Movement
X-axis travel: 210 mm, Y-axis travel: 110 mm. You can adjust the optimal working position as you need.
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine

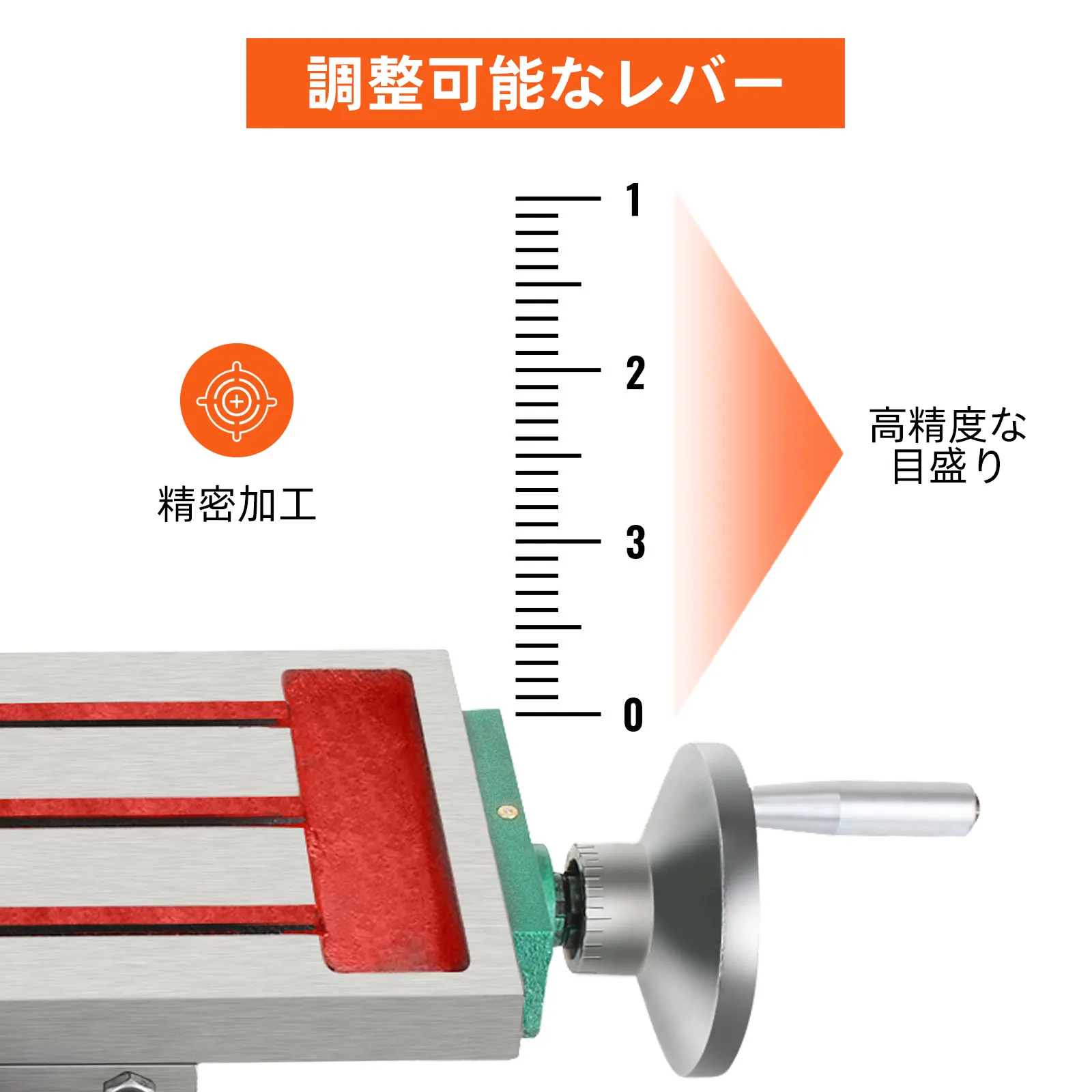

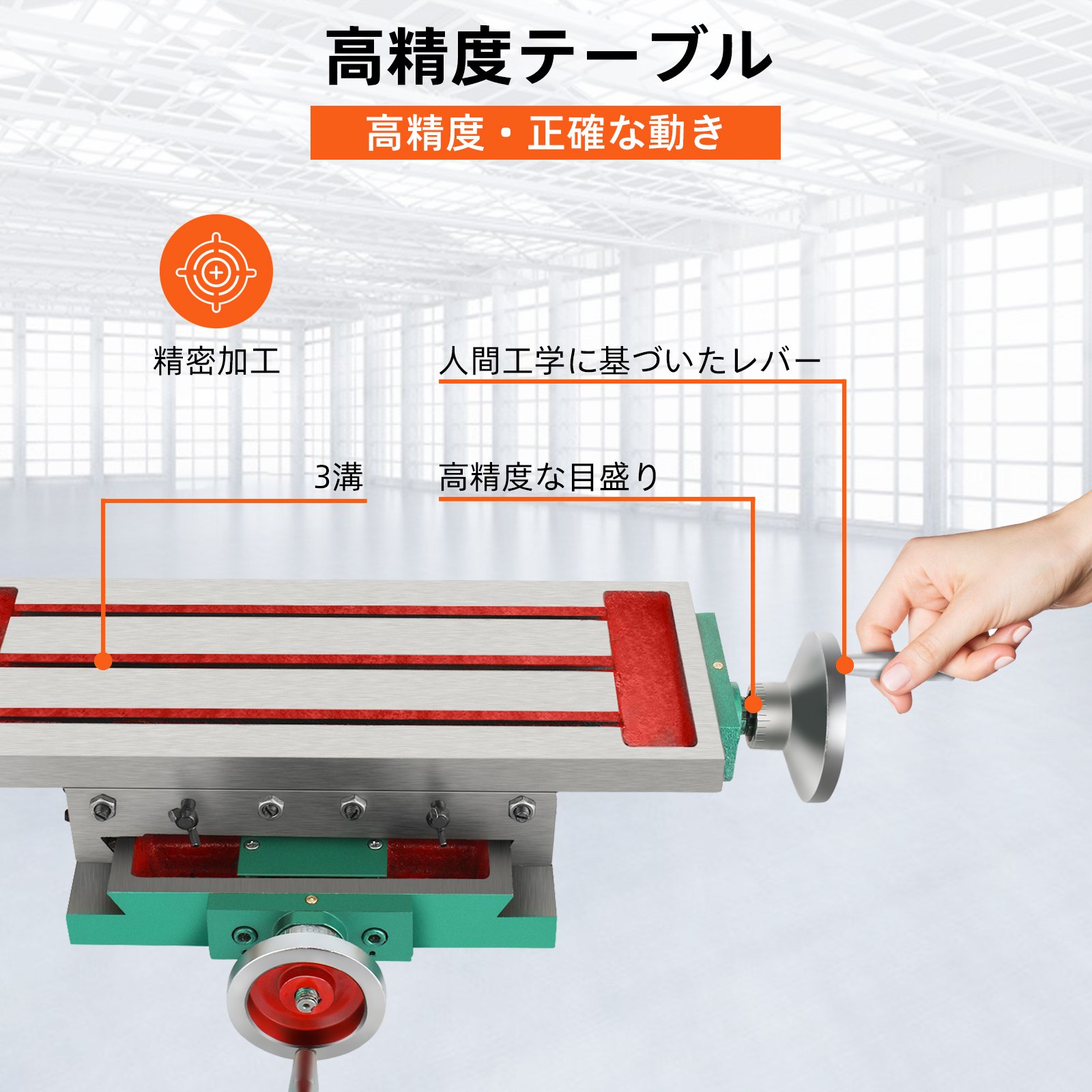

Adjustable Handle
A metal handle with good texture is easy to adjust the directions. With a clear scale on it, the milling machine will be more accurate when in use.
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine

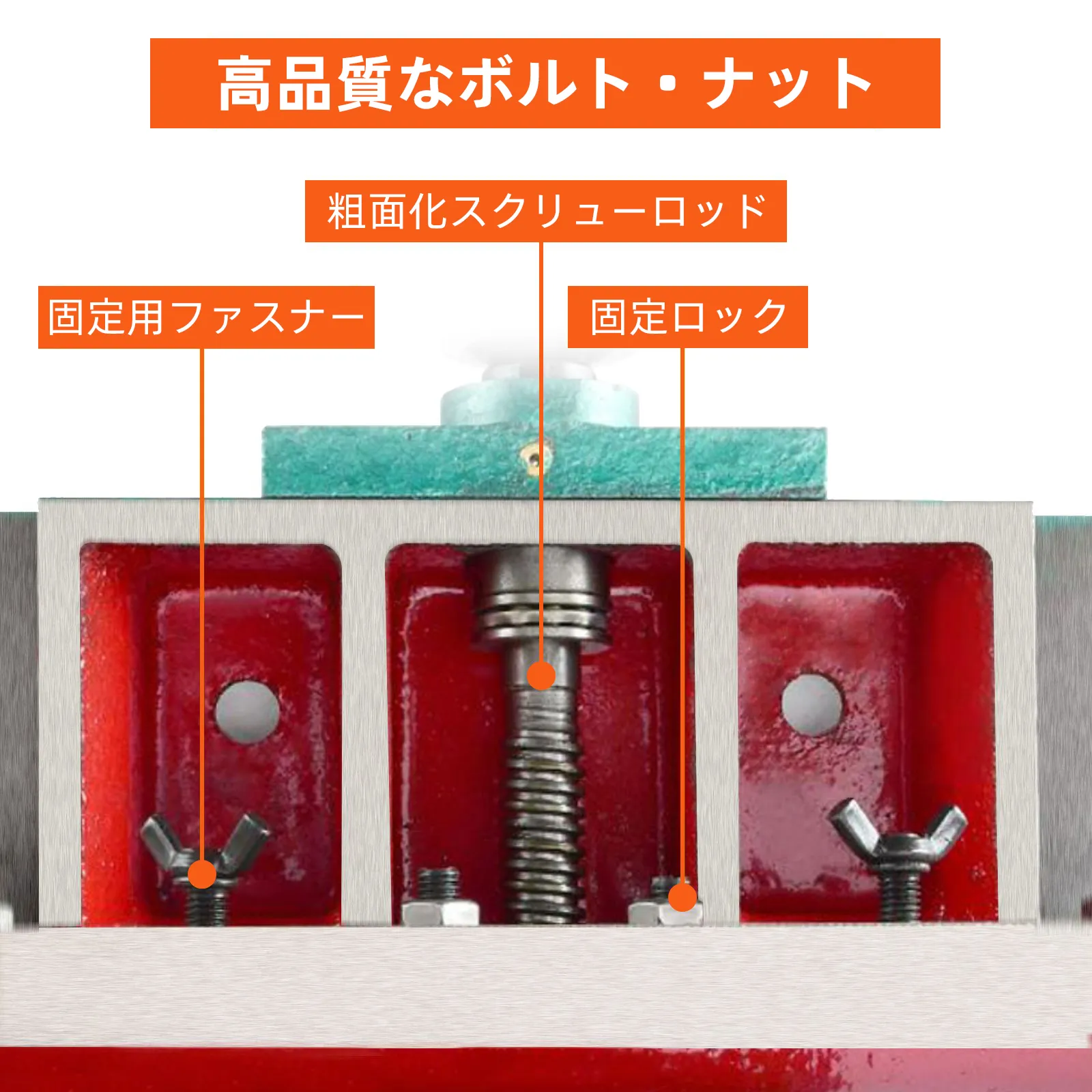

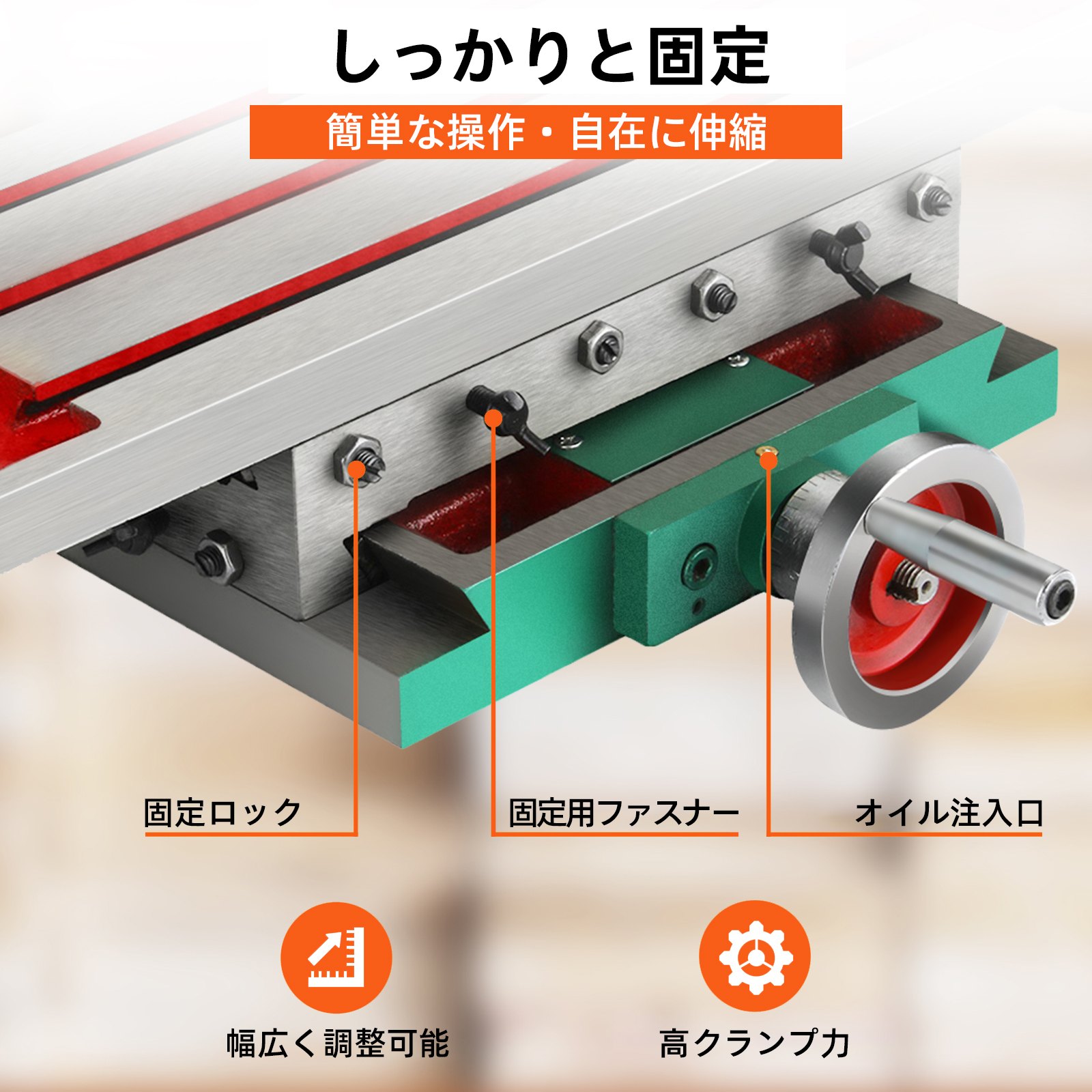

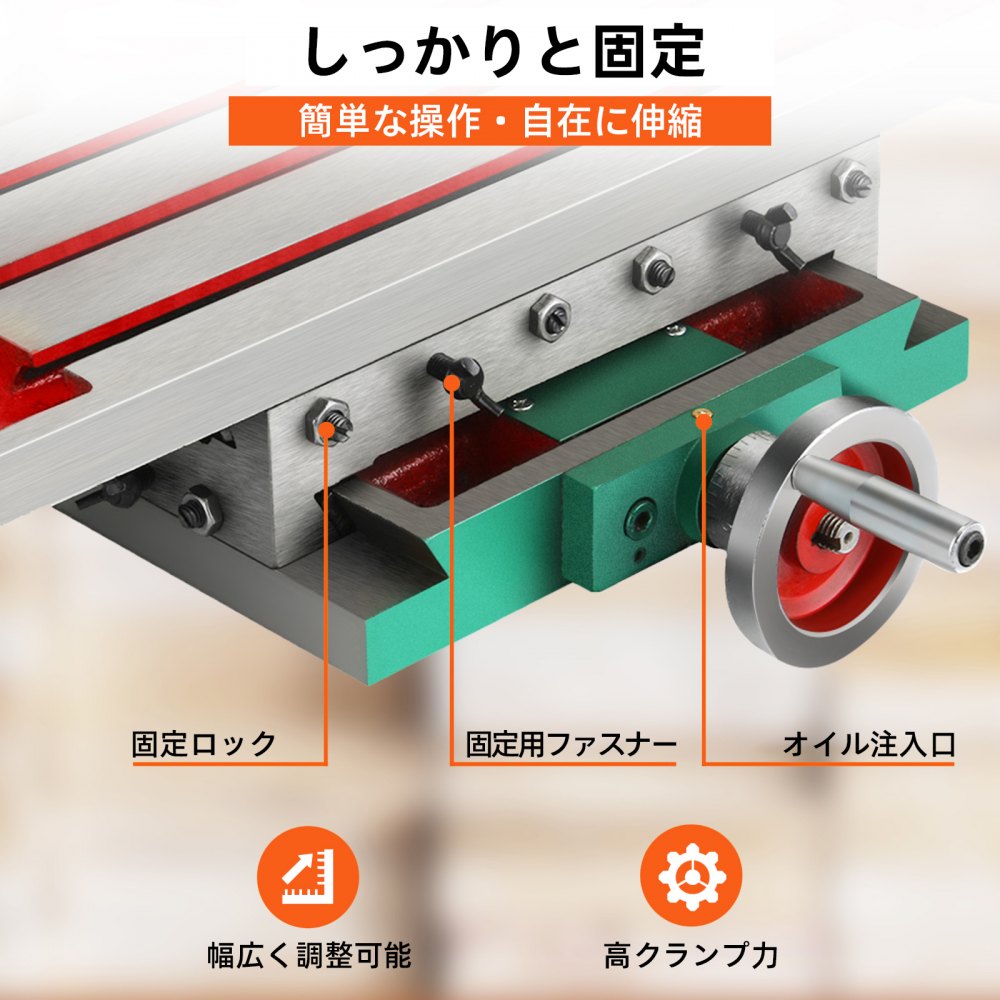

Quality Bolts & Nuts
The drill press table will be more convenient to adjust the tightness of the worktable with a number of bolts and nuts.
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine

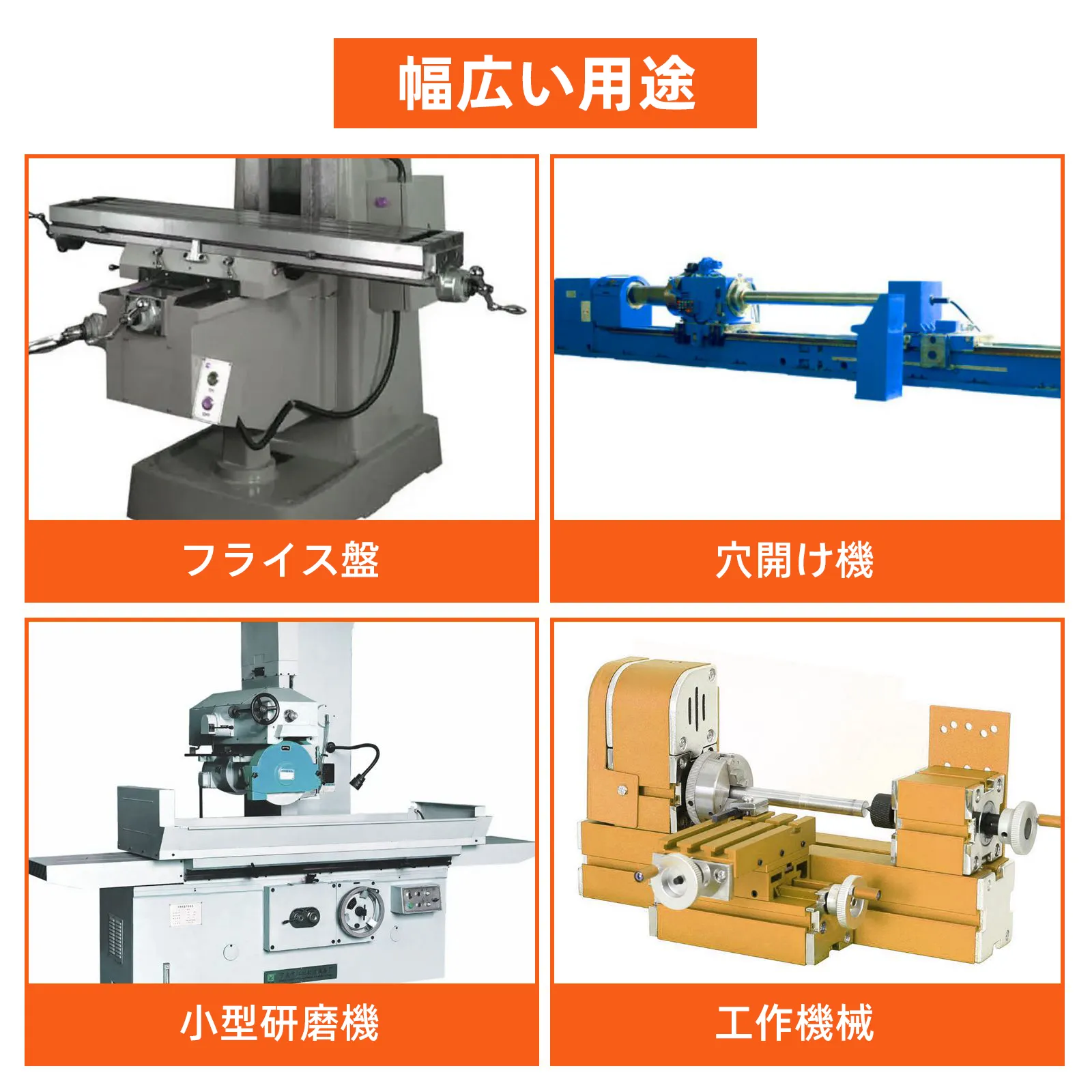

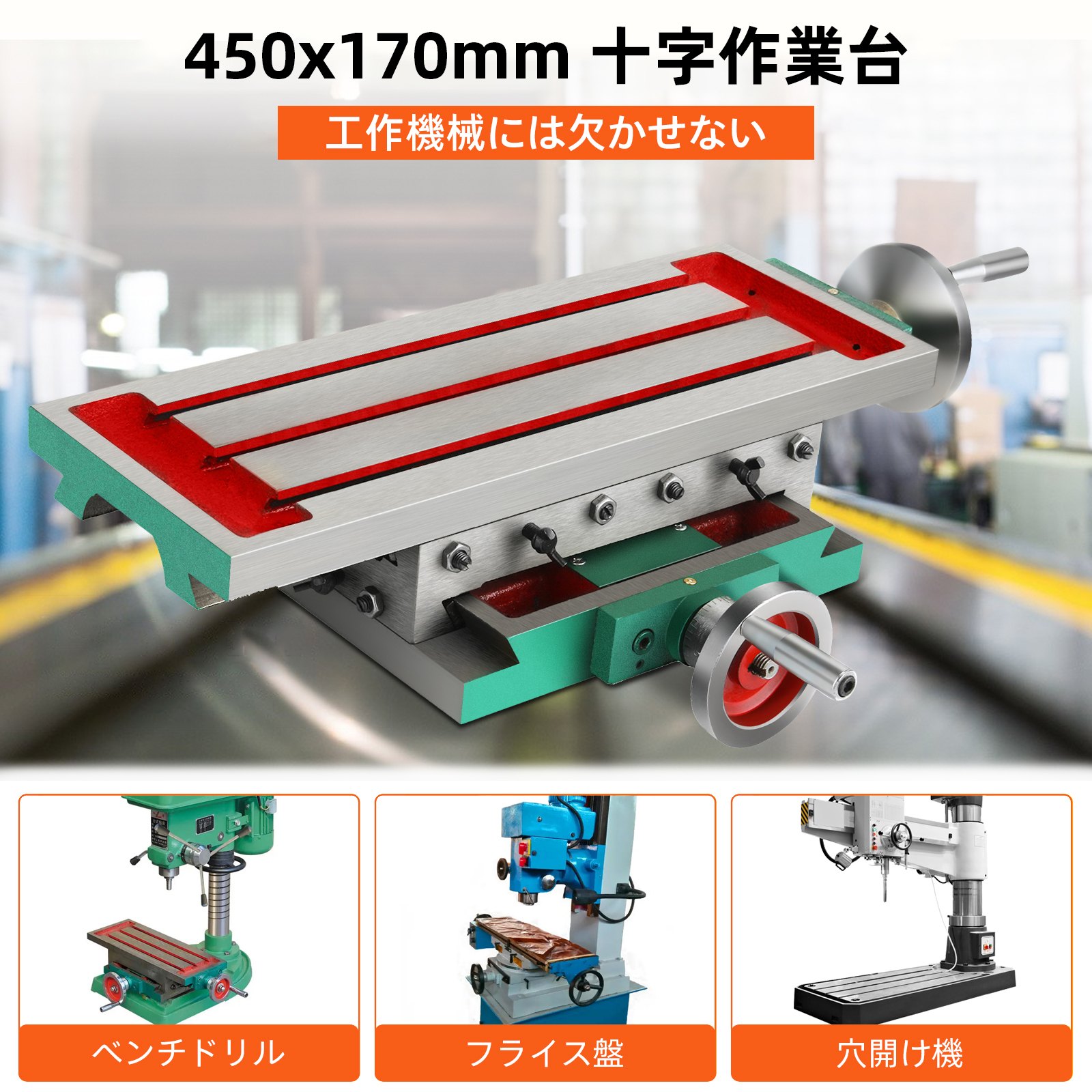

Extensive Application
This milling working table can be used for most types of milling, drilling, and staging, ideal for all drill stands, drilling, and milling machines.
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
Specifications
  • Worktable length: 17.7 in / 450 mm
  • Worktable width: 6.7 in / 170 mm
  • Transverse travel(X-Route): 8.3 in / 210 mm
  • Longitudinal travel(Y-Route): 4.3 in / 110 mm
  • Mounting Hole Size (Transverse): 6.2 in / 15.7 cm
  • Mounting Hole Size (Longitudinal): 5.3 in / 13.5 cm
  • Chassis Size: 10 x 9 in / 26 x 23 cm
  • Overall height: 3.9 in / 100 mm
  • Net Weight: 66 lbs / 30 kg

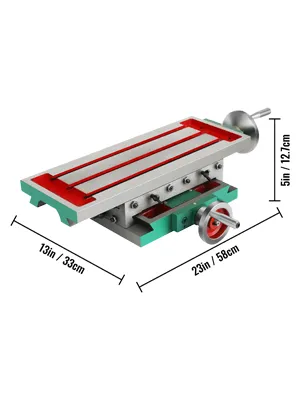

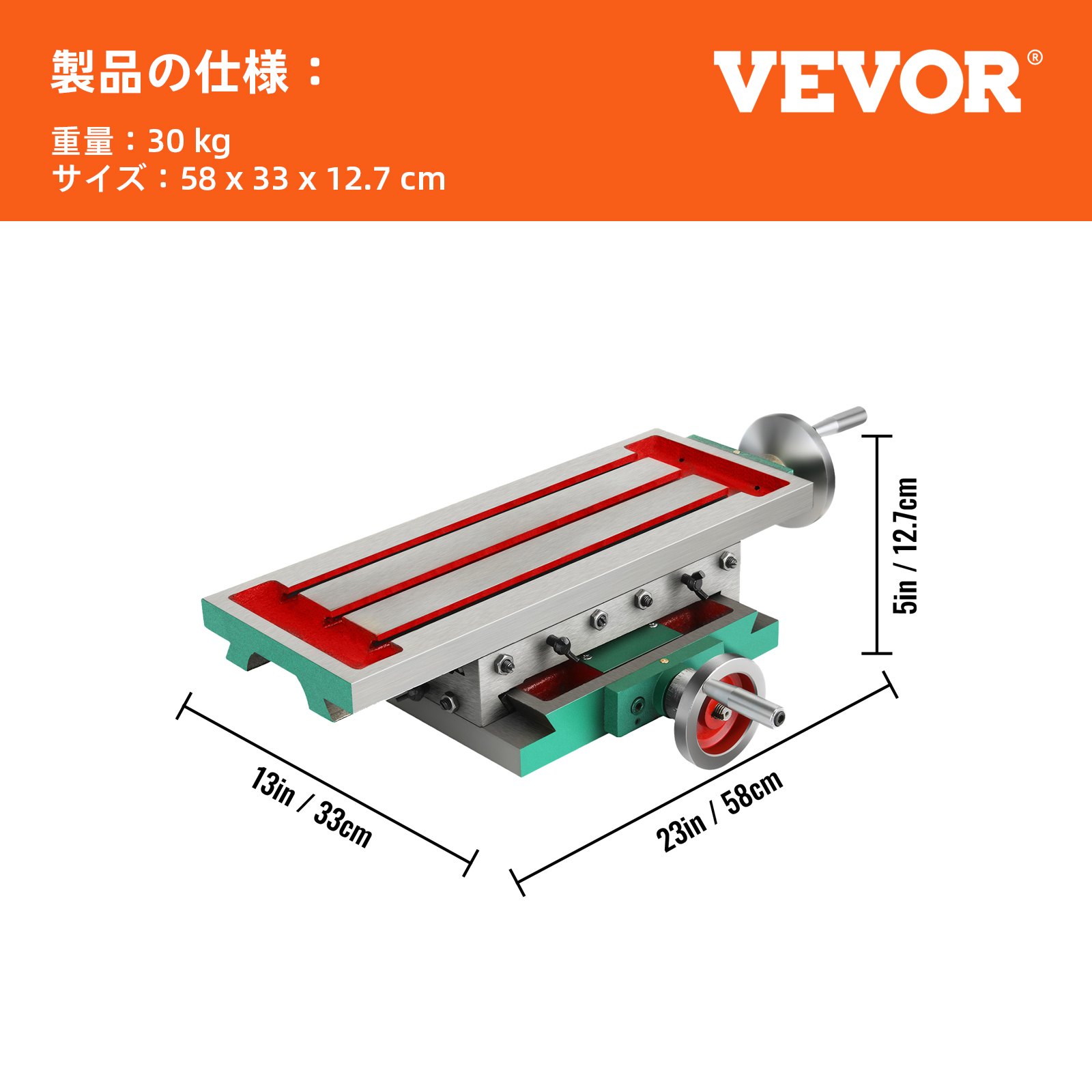

  • Item Dimensions(L x W x H) : 23 x 13 x 5 in / 58 x 33 x 12.7 cm
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
Package Content
  • 1 x Milling Support Table Worktable
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
6.7 in / 170 mm Milling Machine Worktable
Large Worktable & Flexible Movement & High Precision
  • The two-axis workbench surface has three T-slots and provides dual-axis (lateral and cross) positioning via two handwheels for precise adjustments. Perfect for drilling grinding and milling operations.
  • Premium Quality Structure
  • Highly Polishing & Stiffness
  • Adjustment in X Y Direction
  • Tightness Adjustment
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
Heavy-duty Cast Iron
Made of quality cast iron, which is anti-corrosion and rust resistance, more durable and ensures long service time.
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
T Groove Fixing Design
The compound table, with great hardness and stiffness, is high ground and not easy deformation. Three T-slots design can meet different force requirements.
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
2 Axis Movement
X-axis travel: 210 mm, Y-axis travel: 110 mm. You can adjust the optimal working position as you need.
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
Adjustable Handle
A metal handle with good texture is easy to adjust the directions. With a clear scale on it, the milling machine will be more accurate when in use.
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
Quality Bolts & Nuts
The drill press table will be more convenient to adjust the tightness of the worktable with a number of bolts and nuts.
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
Extensive Application
This milling working table can be used for most types of milling, drilling, and staging, ideal for all drill stands, drilling, and milling machines.
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
Package Content
  • 1 x Milling Support Table Worktable
VEVOR Milling Working Table 17.7 X 6.7 Inch, Compound Milling Machine Work Table 2 Axis 4 Ways Move, Multifunction Milling Working Table Heavy-duty Structure,for Milling and Drilling Machine
Specifications
  • Worktable length: 17.7 in / 450 mm
  • Worktable width: 6.7 in / 170 mm
  • Transverse travel(X-Route): 8.3 in / 210 mm
  • Longitudinal travel(Y-Route): 4.3 in / 110 mm
  • Mounting Hole Size (Transverse): 6.2 in / 15.7 cm
  • Mounting Hole Size (Longitudinal): 5.3 in / 13.5 cm
  • Chassis Size: 10 x 9 in / 26 x 23 cm
  • Overall height: 3.9 in / 100 mm
  • Net Weight: 66 lbs / 30 kg
  • Item Dimensions(L x W x H) : 23 x 13 x 5 in / 58 x 33 x 12.7 cm

Specification

Worktable length
17.7 in / 450 mm
Worktable width
6.7 in / 170 mm
Transverse travel(X-Route)
8.3 in / 210 mm
Longitudinal travel(Y-Route)
4.3 in / 110 mm
Mounting Hole Size (Transverse)
6.2 in / 15.7 cm
Mounting Hole Size (Longitudinal)
5.3 in / 13.5 cm
Chassis Size
10 x 9 in / 26 x 23 cm
Overall height
3.9 in / 100 mm
Net Weight
66 lbs / 30 kg
Item Dimensions(L x W x H)
23 x 13 x 5 in / 58 x 33 x 12.7 cm
Manual
Download Link
Questions and Answers
11 Questions
Can up get this with inches on the X Y handles dial instead of mm.
No, we don't have that.
By vevor
How much does it weigh?
30kg.
By vevor
How is it fastened to the drill press?
You can fixed with screws.
By vevor
how is this mounted and secured?
Here is the link to the manual:<br/>https://d2v0huudrf11kh.cloudfront.net/vevor-center-goods/%E5%BE%AE%E4%BF%A1%E5%9B%BE%E7%89%87_20220406112951_1649215812659.jpg
By vevor
1) What provision is there for mounting the entire table to steel or wood? 2) Are the increments on the handles in incehs or millimeters?
1) It is fixed with screws. 2)Millimeters.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
80 Review(s)
Clear filters
Richard M. Richard M.
Better than expected
I read the reviews on this and kinda excited the worst, I could see it was completely fixable. Got mine took it all apart and really nothing was wrong I polished it up a bit put a shim on 1 of the bearings and adjusted everything as tightly as possible set it up. Works really well only tried couple small things. I do wish it was a little bigger.
Asher Asher
Pro
It’s working smoothl and the price is right Good quality above average didn’t need more than that
Jon Palm Jon Palm
Mr
Handles could be better. Over all, works well for price. Good for the DIYers and home garage user. Not for the professional.
Jon Jon
Electrician
Pretty sloppy but for the price it is a great addition to a drill press especially if you have a 4" machine vice to go with it...................................................................................................................................................................................................................................................................................Vevor wanted 100 more characters. I didn't have anything else to say. If you need more help with this tool there are many videos on youtube.
Carl H. Carl H.
Good tool in the rough for the price
If you expect it to be a precision tool out of the box, you will be very disappointed. The price of one being accurate upon delivery starts at around $1,800. Before I purchased it I did some research and found a machinist on YouTube who disassembled the same model and showed how to sand the rough edges and adjust it for accuracy. I agreed with him that for the price it was worth a try. When I got it out of the box, all the edges were razor sharp, the slides were loose in some places and bound up in other places. After taking it completely apart, cleaning all parts, using high speed grinder sanding discs on the edges and slide surfaces, realigning the slide bolt, lubricating, and then reassembling, I am very pleased with the product. Because I knew what I would be getting, knew I would have to invest several hours of work into it, and knew how much money I was saving, I would say it’s a very good product. But if you want a polished, accurate one out of the box, skip this one. Take out a second mortgage on your house and buy one elsewhere.
Mark Mark
Good value
The castings and machining are good but the lead screws and mechanism need some attention. If you replace the lead screw and perhaps add some DROs the table will work very well. In my opinion this table is a VERY GOOD value. Aside from the lead screw, this table is a good as tables that cost 4 to 5 times more.
Dave Zehner Dave Zehner
fis a need my shop.
This is not what I would consider a milling table but is fine for use on my drill press. I have a mini mill for milling operations and am upgrading to a larger mill soon, but for less precise work this does a good job. For making a series of holes in a relatively straight line, this will do the trick.
Mark Mark
User
For the price, this is fantastic milling table. It’s nice and tight with no perceptible slop at the mating surfaces, and an acceptable amount of take up at the hand wheels. it is very well-made, heavy, and is now my permanent table for my homemade 1945 Atlas model 73 based mill.
Tigger Tigger
crossfeed
got it to set up for feed for knife grinder. Use it to control advance feed for slide. accurate enough for me to control amount of bevel grind down to a few .001
Joel Joel
Mr
I am very satisfied. We did a review of the crossfeed table on our youtube channel at College Hill Farm. We are using it to convert a drill press to a milling machine.
